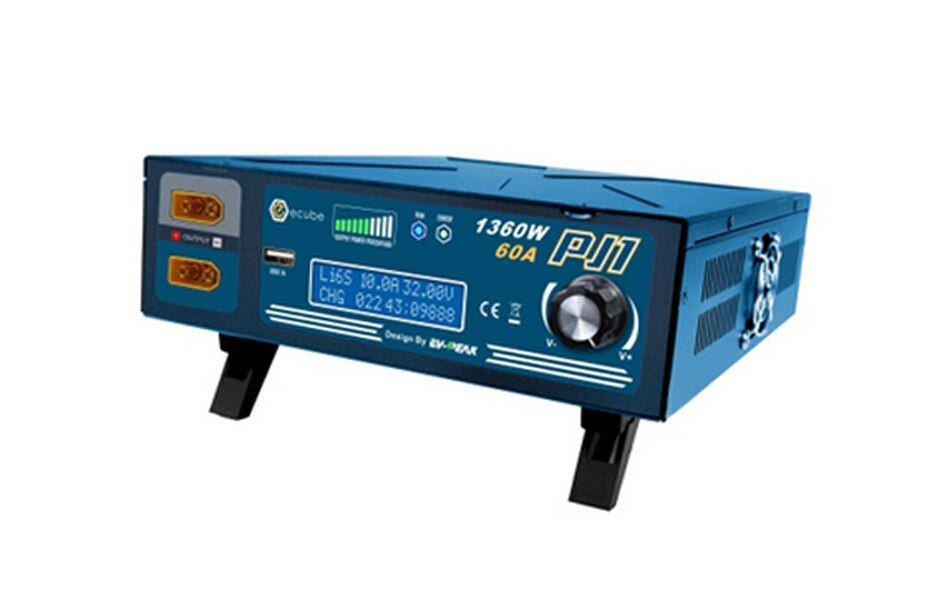

EV-Peak EV-PJ1 PSU 1350W/60A Power Supply

Be the first to review this product
Manufacturer: EV-PEAK
Availability: Out of stock
SKU: EV-PJ1
$369.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

PJ1 1350W/60A Power Supply

P series is the professional high power high output power supply. With active PFC technology, It is capable of correction on AC input voltage and universal on a global basis.

PJ1 is a high power, adjustable double channel DC output, the maximum can ascend to 1350W / 60A switching power supply.

PreviousNext
ev-peak pj1 1350w 60a power supply 2
ev-peak pj1 1350w 60a power supply 1

1350W

Max Output Power

60A

Max Output Current

12-24V

Output Voltage

Active PFC

Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency. It is capable of correction on AC input voltage and universal on a global basis.

ev-peak pj1 1350w 60a power supply active pfc
evpeak c1xr 100w 10a lipo charger features
ev-peak pj1 1360w 60a adjustable dual power supply maximum safety 2

Over Current Protection

ev-peak pj1 1360w 60a adjustable dual power supply maximum safety 3

Short Circuit Protection

ev-peak pj1 1360w 60a adjustable dual power supply maximum safety 1

Over Temperature Protection

USB Charge

5V/2A USB port for other device charging

ev-peak pj1 1360w 60a adjustable dual power supply usb charge icon
ev-peak pj1 1360w 60a adjustable dual power supply usb charge

LED Indication

Output power percentage indicates the working status

ev-peak pj1 1360w 60a adjustable dual power supply led indication
ev-peak pj1 1360w 60a adjustable dual power supply led indication 1

LCD Display

Real time display the output voltage, current, power and inner temperature

ev-peak pj1 1360w 60a adjustable dual power supply lcd display

Output Voltage Adjustable

Output voltage is adjustable from 12V-24V

ev-peak pj1 1360w 60a adjustable dual power supply output voltage adjustable

How to Use

ev-peak pj1 1360w 60a adjustable dual power supply charge how to use

What’s in the Box

ev-peak pj1 1360w 60a adjustable dual power supply accessories

Specifications

ev-peak pj1 1360w 60a adjustable dual power supply specifications
