Application: Airplane
-
Bearings or Bushings: One 6 x 15 x 5mm Bearing and Two 6 x 12 x 4mm Bearing
-
Cells: 12–16 Ni-MH/Ni-Cd or 4–5S Li-Po
-
Continuous Current: 41 - 50A
-
Diameter: 50mm (2 in)
-
Idle Current (Io): 3.90A @ 10V
-
Length: 55mm (2.15 in)
-
Maximum Burst Current: 55A (15 sec)
-
Motor Design: Outrunner
-
Overall Diameter: 50mm (2.00 in)
-
Overall Length: 55mm (2.15 in)
-
Power Plant Size: 25-52 Electric
-
RPM/Volt (Kv): 670
-
Recommended Prop Range: 12x8 to 14x10
-
Resistance (Ri): .04 ohms
-
Shaft Diameter: 6mm (.24 in)
-
Size: Replacement for 40- to 46-size glow engines
-
Speed Control: 60A brushless
-
Type: Brushless outrunner
-
Voltage: 14.4 to 19.2
-
Weight: 290 g (10.0 oz)
-
Wire Gauge: 14

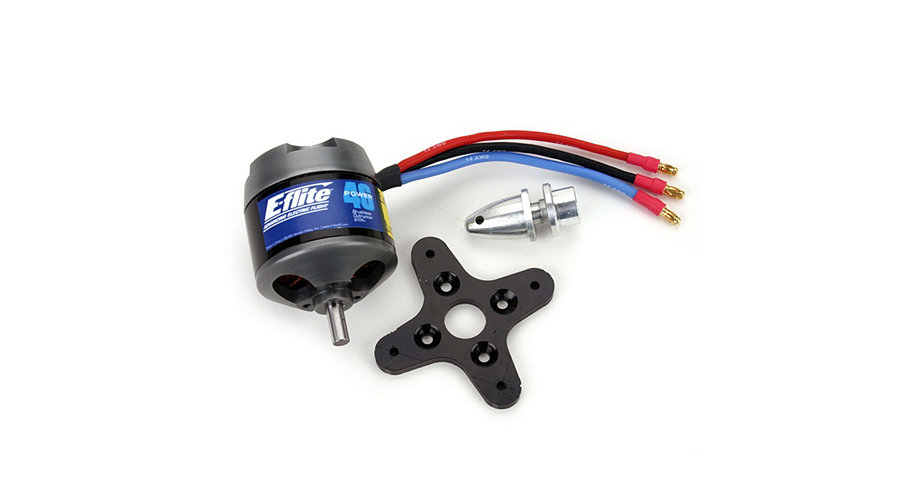

The Power 46 is designed to deliver clean and quiet power for .40 to 46-size sport and scale airplanes weighing 4 to 7 pounds (1.8–3.2 kg), 25- to 40-size 3D airplanes up to 5 pounds (2.2 kg), or models requiring up to 925 watts of power. It’s an especially good match for Hangar 9 .40-size trainers like the Alpha .40 (HAN2450), Arrow .40 (HAN2625) and warbirds like the T-34 Mentor 40 (HAN2425). Also a great match for sport planes like the Ultra Stick 40 (HAN1675 or HAN1690), Seagull Spacewalker 40 (SEA2050), and smaller sport 3D planes like the Twist 40 (HAN2650).
