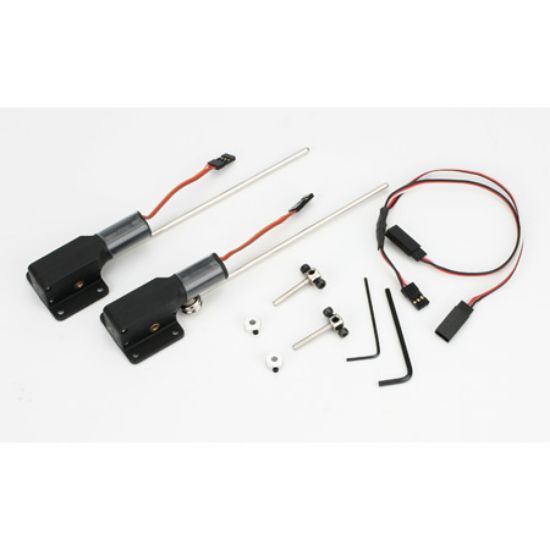

E-Flite EFLG100 10 - 15 Size Main Electric Retracts

10 - 15 Size Main Electric Retracts

Used for the Parkzone P-47 BNF & RTF

Key Features

• Robust landing gear strut and mounting bracket
• Integrated electric motor with a micro PCB
• Built-in overcurrent protection
• Aircraft Weight: 2.00 - 4.50 lb (0.90 - 2.00kg)
• Strut Diameter .118 inch (3mm)

Specs:

Application: Aircraft 10�15 size
Speed: 4.8V (1.25 seconds), 6.0V (1.0 seconds), 7.4V (.80 seconds)
Weight: 3.1 oz (complete set)
Motor Type: Electric brushed can
Connector Type: JR, universal
Gear Type: Metal
Current Draw Idle: 5mA
Current Draw Stall: 200mA
Voltage: 4.8�7.4

Overview

You don�t have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite�s completely self-contained retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.

Detailed Information

10-15 Size Main Retract Units (mm)
