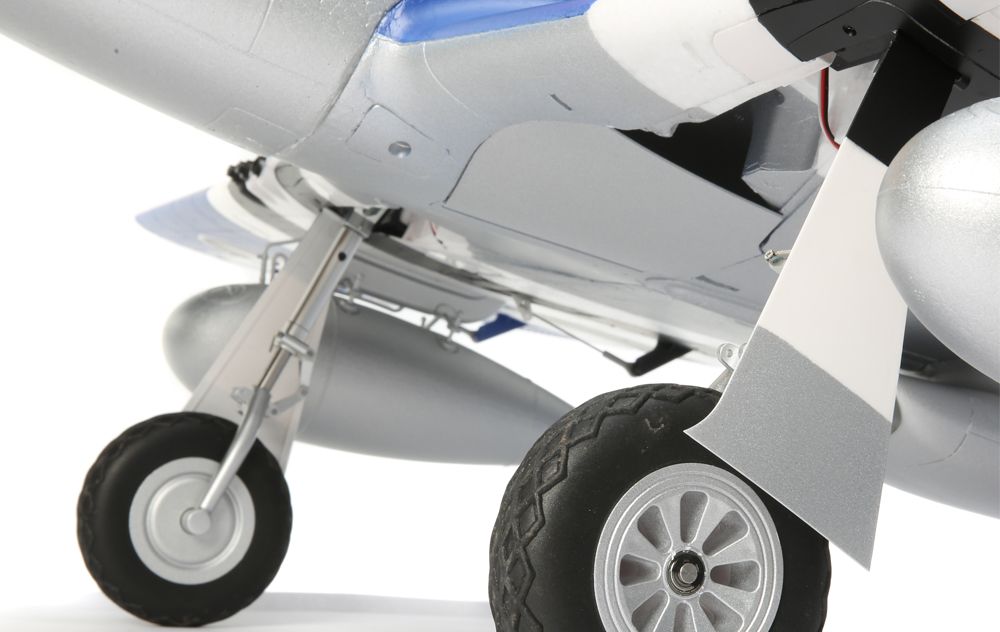

| For Intermediate Modelers at least 14 Years of Age Construction: EPO foam with carbon fiber and wood reinforcement, no glue required for assembly Trim Scheme: Painted Lou IV Wing: 3-piece, center section with main gear, plus outer panels that snap into place without fasteners Electronic Speed Control: 100A Spektrum Avian Smart ESC with IC5 battery connector Motor: Brushless 4650 - 460kV Receiver: Spektrum AR637TA with AS3X (Artificial Stabilization-3aXis) technology that senses and counters the effects of wind and turbulence, SAFE Select features include Pitch and Bank Angle Limits, Automatic Self-Leveling and Easy Switch Assignment-No Programming Required Landing Gear: Electric retracts with ball bearing equipped wheels and diamond tread pattern tires Servos: Nine total with ball link linkages Propeller: 15.5x11 4-blade Warranty: Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the Product) will be free from defects in materials and workmanship at the date of purchase. E-flite P-51D Mustang 1.5m BNF (Bind-n-Fly) Basic with Motor, ESC, Receiver, Servos, Propeller and Instruction Manual Transmitter: At least 6-channel LiPo Battery: 6S 22.2V 3200-7000mAh with IC5 or EC5 connector Battery Charger: Compatible with selected battery Wingspan: 59 (1500mm) Length: 52 (1320mm) Flying Weight: 7.5lbs - 8lbs (3.4kg - 6.3kg) Approximate Assembly Time: Less than 1 hour Skil Level: 2, some experience required Center of Gravity, CG: 4.9 - 5.4 (124 - 137mm) back from leading edge of wing measured at wing root Control Throws: Low Rate High Rate Elevator, up: 0.51 (13mm) 0.51 (13mm) down: 0.39 (10mm) 0.39 (10mm) Aileron, updown: 0.47 (12mm) 0.59 (15mm) Rudder, leftright: 0.59 (15mm) 0.87 (22mm) Flaps: Take-off 1.1 (27mm), Landing 2.4 (60mm) EXPO Low Rate High Rate Elevator: 70 100 Aileron: 70 100 Rudder: 70 100 |
