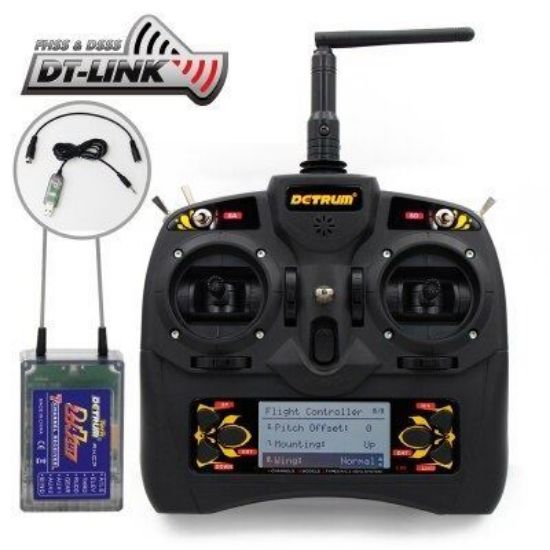

Dynam/Detrum DTM-T002 GAVIN-6C 6-Channel digital transmitter w/ RXC7 w/ USB Simulator cable

Manufacturer: Detrum
Availability: Out of stock
Ship to
Shipping Method
Estimated Delivery
No shipping options

Product Description


GAVIN-6C is a 2.4GHz 6-channel transmitter applicable for airplane, helicopter and multi-copter. Using low power devices leads to longer battery life. Support four stick modes to meet different operating habits. Support Trainer and Fail Safe functions which provide security for users. GAVIN-6C could provide the USB upgrade function and be used to set the programmable item of the flight controller for airplane.

Using the DSSS&FHSS dual spread spectrum technology,  will enhance the transmitter by increasing the anti-interference performance and transmission distance, even can controlled normally in city center, do not worry about the strong interference from high voltage lines, signal towers, city WiFi, etc.

DETRUM RXC7 is a 2.4GHz 7-channel normal receiver. By using diversity antenna, can automatically switch the signals to ensure the stability of the received signal. The RXC7 will set the output according to transmitter’s Fail Safe function when receiver cannot receive signal.


GAVIN-6C transmitter

- Applicable for airplane, helicopter and multi-copter.

- 30 model memory

- Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequence-hopping spread spectrum (FHSS) technology, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

- Adopting wireless chips, with extended power amplifier (PA) and low noise amplifier (LNA) can extremely improve the system output power and receiving sensitivity.

- The transmitting efficiency is greatly improved by using all-band antenna on transmitter.

- Can experience a smooth flight operation by using the 4096 section precision sticks and selecting four stick modes.

- Using low power devices could reduce the transmitting power, also lead to low battery power consumption and longer battery life.

- USB upgrade function always keeps your GAVIN-6C the latest program.

- Support Fail Safe function, which could predefine the servo position by transmitter when receiver out of control.

- Trainer function make a skilled instructor can teach a student with fly skills.

- Can be used to set the programmable item of the flight controller for airplane.

RXC7 receiver

- Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technology, the receiver has high sensitivity and strong anti-interference capability.

- Automatically switch the signals to ensure the stability of the received signal by using diversity antenna.

- Each ID code of transmitter can be stored in receiver and no further binding after restarting the receiver.

- The receiver will move the servos to predefined position when the aircraft flies out of range and cannot receive a valid RF signal from transmitter.


GAVIN-6C transmitter

Channel: 6-channel

Transmitting frequency: 2.4GHz

Spread spectrum: DSSS&FHSS

Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po (NOT INCLUDED)

Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (Operating mode).

Output power: 10mW (test mode); 100mW (Operating mode).

Output pulse: 1000ms~2000ms (neutral 1500ms)

RXC7 receiver

Type: 2.4GHz 7-channel normal receiver

Sensitivity: -95dBm

Frequency interval: larger than or equal to 4MHz

Power supply: 4.8V~6V

Weight: 10g

Size: 39mm*28.5mm*14.5mm

Packing lists


GAVIN-6C transmitter  ×1

DETRUM RXC7 Receiver  ×1

Bind Plug  ×1

Introduction Manual  ×1

USB cable  ×1

Simulator Converter  ×1 (optional)

9g Servo  ×4 (optional)
