Dynam DY8982 E-2C Hawkeye AEW 1500mm Twin-Engine 360° Rotating Radar RC Scale Airplane PNP

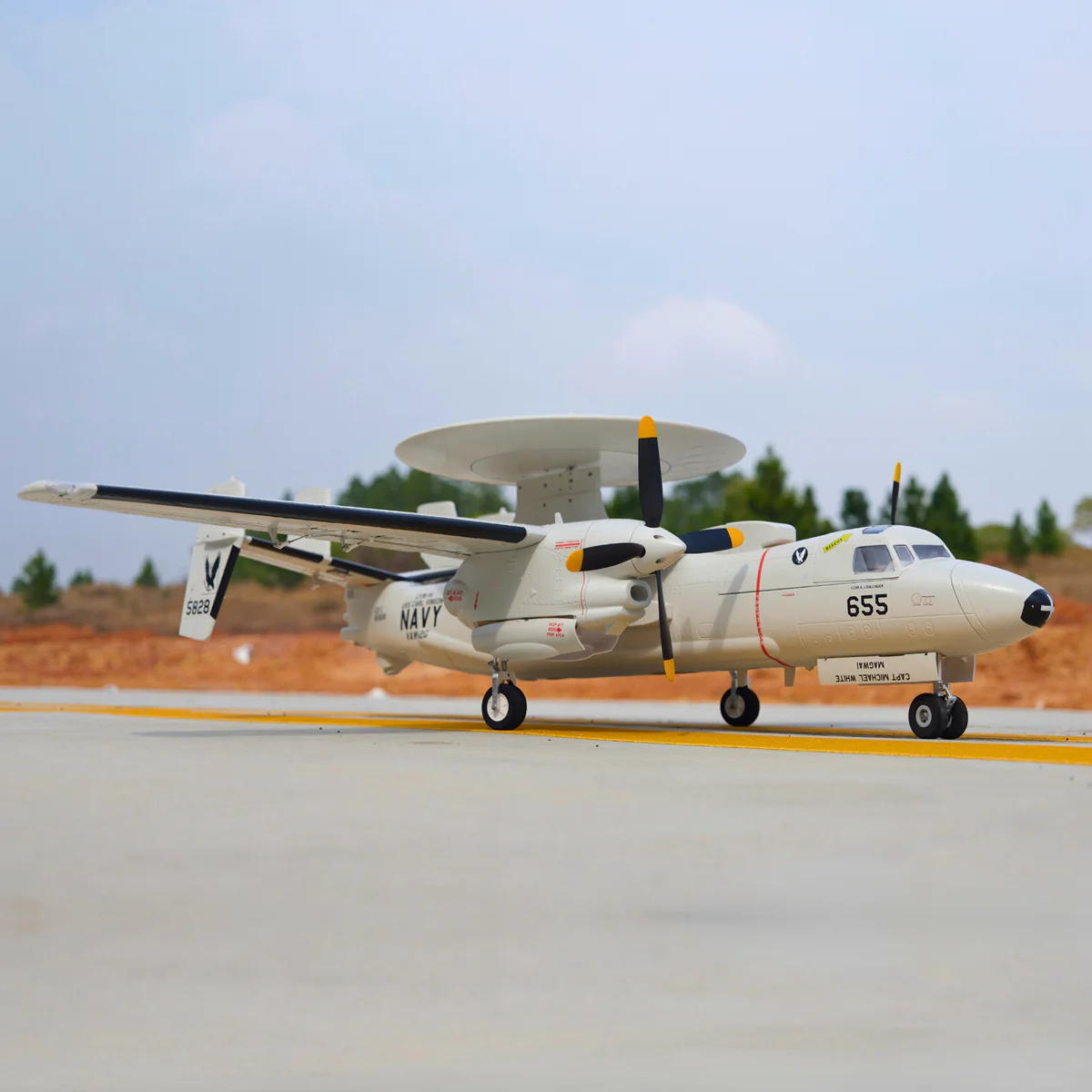

The Dynam E-2C Hawkeye AEW is a highly detailed, scale replica of the iconic airborne early warning aircraft, designed to deliver both realism and performance. With its distinctive rotating radar dome and twin-engine power system, this 1500mm wingspan model offers a unique flying experience that stands out on any flight line.

Key Features

• Realistic Rotating Radar Dome
  Functional 360° rotating radar adds unmatched scale realism and visual appeal in flight.
• High-Fidelity Scale Design
  Accurately reproduced proportions and details, including landing gear doors, cockpit, and lighting system.
• Powerful Twin Motor System
  Equipped with dual TomCat 3520-KV770 brushless motors and two 40A ESCs, delivering a thrust-to-weight ratio greater than 1:1 for confident takeoffs and strong flight performance.
• Stable and Versatile Flight Characteristics
  Designed for intermediate pilots, the E-2C offers smooth handling with excellent stability, suitable for both scale cruising and controlled approaches.
• Dual Flap System
  Two-stage flaps allow for slower, controlled landings or higher-speed passes as needed.
• Dual-servo elevator control; Dual-servo rudder control
• CNC Aluminum Shock-Absorbing Landing Gear
  Durable retractable landing gear system ensures smooth takeoffs and landings on various surfaces.
• Modular Quick-Assembly Design
  Multi-section wings and screw-fixed components enable fast assembly and easy transport without glue.
• Enhanced Structural Strength
  Reinforced with carbon fiber rods and strips for improved rigidity and durability.
• Crash-Resistant Detachable Nose
  Magnetic quick-release nose design helps reduce damage during impact.
• Full Lighting System
  Includes navigation lights (red/green), belly light, and tail light for enhanced visibility.

Specifications

• Wingspan: 1500mm (59.0 in)
• Overall Length: 1106mm (43.7 in)
• Flying Weight: 3150g (with battery)
• Wing Loading: 125 g/dm²
• Center of Gravity: 95–100mm from wing leading edge (root)

Power System

• Motors: 2 x TomCat 3720-KV770 Brushless (pre-installed)
• ESCs: 2 x TomCat Skylord 40A (pre-installed)
• Propellers: 4-blade 10.5x8x4 (standard & reverse included)

Electronics

• Servos: 11 x 9g Servos (pre-installed)
• Landing Gear: 3.6mm 90°Electric Retracts with GLCU (pre-installed)
• Lighting: Integrated navigation and position lights

Required to Complete

• Transmitter: 6+ Channel 2.4GHz
• Receiver: 6CH with gyro recommended
• Battery: 4S 14.8V 3200mAh 25C Li-Po (XT60 connector) https://www.hobbyhangar.co.nz/maniax-power-mx-4s-3300-30-xt60-4s-148v-3300mah-30c-lipo-battery-xt60

Flight Characteristics

• Flight Time: Approx. 9 minutes
• Skill Level: Intermediate
• Recommended Environment: Outdoor

Construction & Design Details

• Durable EPO foam construction
• Three-piece wing with carbon fiber reinforcement
• Screw-fixed horizontal and vertical stabilizers
• Ball-link control rods for precise control
• Steerable nose gear for improved ground handling
• Detailed cockpit with pin-lock canopy
• Clean internal layout with reinforced wood structure
• Upgraded packaging for safe transport

Why Choose the Dynam E-2C Hawkeye?

The Dynam E-2C Hawkeye is not just another scale model—it's a centerpiece aircraft. With its rotating radar, twin-engine performance, and exceptional attention to detail, it offers a flying experience that is both visually striking and technically satisfying. Whether you're a scale enthusiast or looking to add something truly unique to your fleet, the E-2C delivers on every level.
