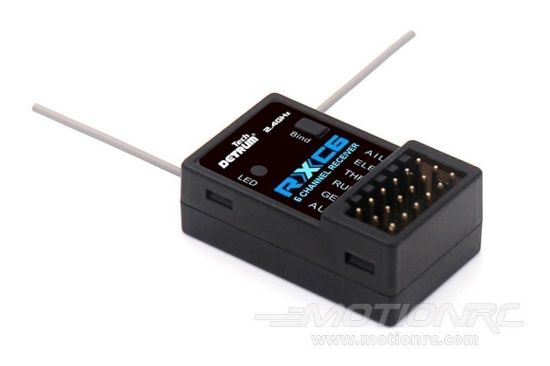

DYNAM DETRUM RXC6 6CH 2.4G MINI RECEIVER DTM-R004

Features

Main Control IC

Using ARM M3 processor, provides strong resolution capability.

Mini Size

The size of RXC6 is super small (33*20mm), it is more suitable for small-scale aircraft which can fly in the park.

High Sensitivity

Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technology, the receiver has high sensitivity and strong anti-interference capability, can receive signal stably for more than 1,000 meters in the air.

Diversity Antenna

By using diversity antenna, can automatically switch the signals to ensure the stability of the received signal.

Unique ID Code

Each transmitter has an individually assigned, unique ID code. Once the binding is made, the ID code is stored in the receiver and no further binding is necessary after restarting the receiver.

Fail Safe

When the aircraft flies out of range, the receiver cannot receive a valid RF signal from the transmitter, and will move the servos to predefined position.

Mini RXC6 6CH Mini Receiver

Specification

Dimension: 20*33*12.5mm

Weight: 6.9g

Frequency: 2.4GHz

Communication Distance: ＞1.1km

Power Supply: 3.6V~16V

Output Signal: PWM
