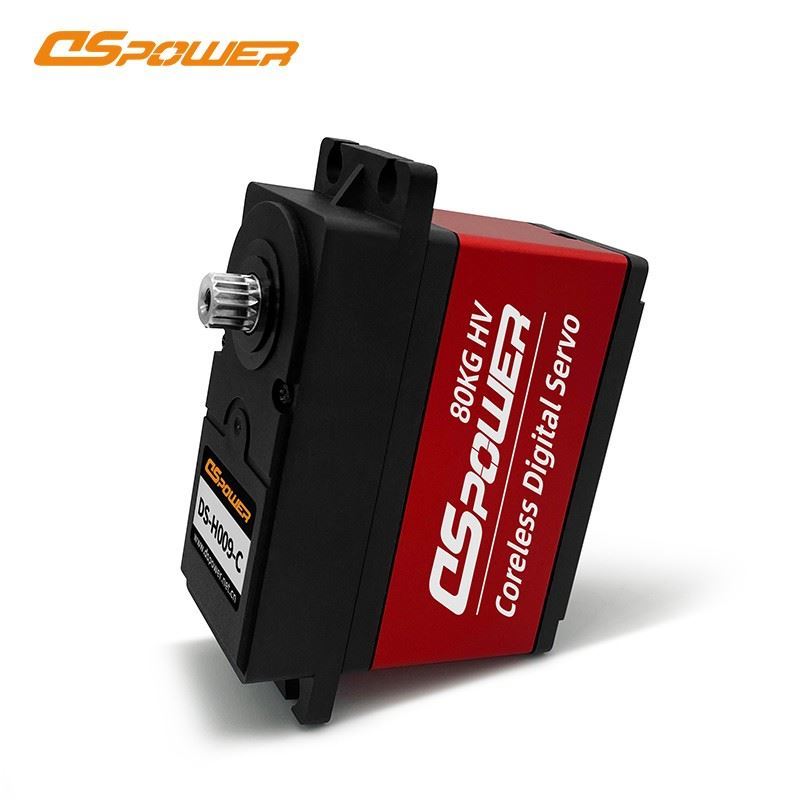

DS Power DS-H009-C 70-80kg Coreless Motor 1/5th Servo

Manufacturer: DS Power
Availability: 2 in stock
SKU: DS-H009-C
$169.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options



Product Parameters



Standby Current: ≤15mA at 7.4V



No Load Current: ≤240mA at 6.0V / ≤250mA at 7.4V /

≤260mA at 8.4V



No Load Speed: ≤0.17sec/60° at 6.0V / ≤0.14sec/60° at 7.4V /

≤0.12sec/60° at 8.4V





Rated Torque: ≥15kgf·cm at 6.0V / ≥20kgf·cm at 7.4V /

≥25kgf·cm at 8.4V





Stall Current: ≤7.4A at 6V / ≤9.4A at 7.4V /

≤10.8A at 8.4V





Max Torque:

≥50kgf·cm  at 6V / ≥70kgf·cm at 7.4V /

≥80kgf·cm at 8.4V



Rotating Direction: CCW(1000→2000μs)



Pulse Width Range: 500~2500μs



Operating Travel Angle: 180°±10°(500~2500μs)



Mechanical Limit Angle: 180°



Angle deviation: ≤ 1°



L&R Angle deviation: ≤ 5°



Back Lash: ≤ 1°



Case Material: CNC aluminium middle Shell



Gear Set Material: Strong Steel Gear



Motor Type: Coreless motor
