Dreamflight DFAH100 Ahi kit w/servos and Rx batt

NZ Kits include Metal Gear Flight Pack for Ahi

Get your Ahi into the air quickly with no hassles! All components are a drop-in fit

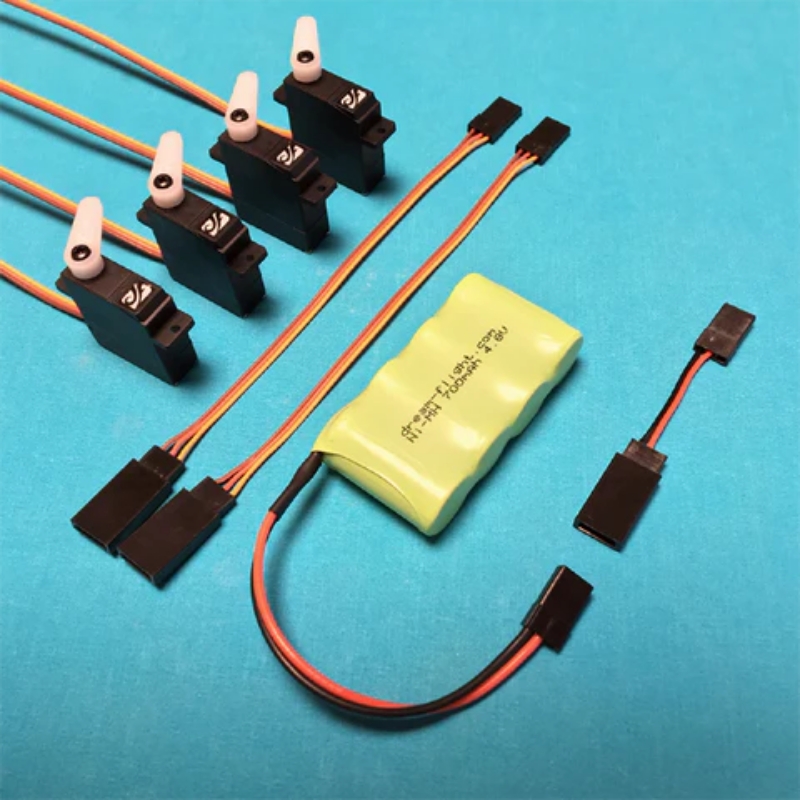

(4) 12g DMG Servos
(1) Rx Battery 4.8V NiMH 700mAh
(1) Battery Extension Wire (Simple and lightweight alternative to a switch)
(2) Aileron Extensions (Ahi, Libelle)

Note: Battery, servos, and extensions feature universal style connectors (fits Futaba/Hitec/JR/Spektrum)

12g DMG (Digital Metal Gear) Servo Specifications:

Weight: 12g
Maximum Torque (4.8V): 2.4 Kg cm
Size: 23 x 9 x 32mm
Speed: 0.12s for 60° (4.8V)

Rx Battery Specifications:

Voltage: 4.8V
Capacity: 700mAh
Weight: 57g
Size: 57.5 x 31 x 14.5mm
Charge: 250-700mA

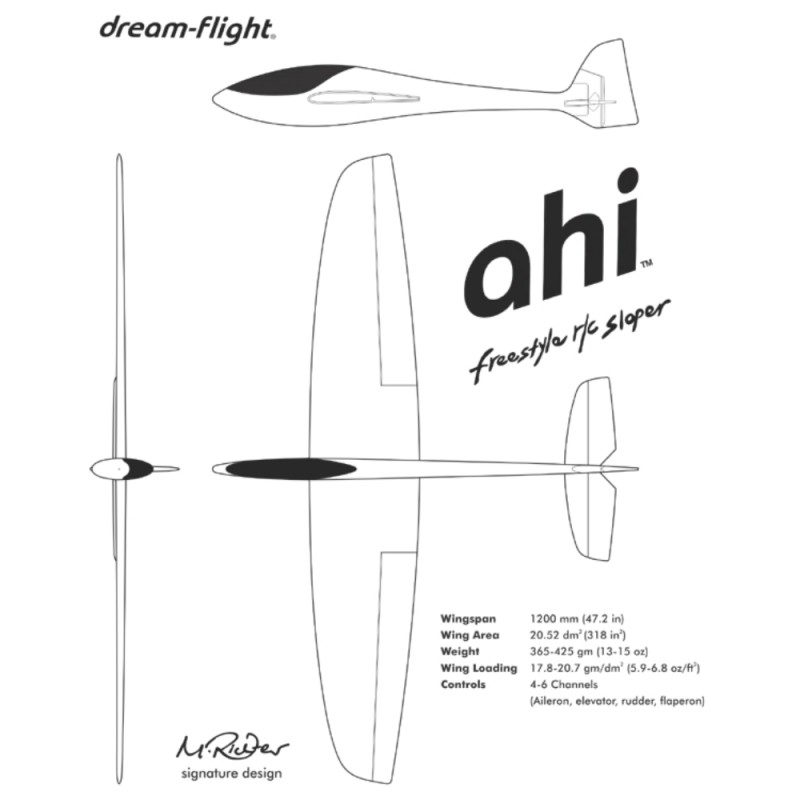

Ahi Specifications:

WINGSPAN          1200 mm (47.2 in)
WING AREA         20.52 dm² (318 in²)
WEIGHT               340-425 gm (12-15 oz)
WING LOADING   16.6-20.7 gm/dm² (5.4-6.8 oz/ft²)
CONTROLS          4-6 Channels (flaperons)
SKILL LEVEL       Accomplished Weaseler!
ASSEMBLY          Under an hour
FLIGHT STYLE     Freestyle slope shredder
WIND SPEED       4-9 m/s (8-20 mph)

Items Required for Completion:

• Transmitter with programmable flaperon mixing and adjustable dual rates/EPA
• Micro receiver (we recomend the Futaba R2106GF or Spektrum SPMAR410)
• Small tools, Blenderm tape or adhesive

Strongly Recommended:

• Blenderm Tape for securing airframe
• Steel Balance/Ballast Weights (Part RCP-BM053)

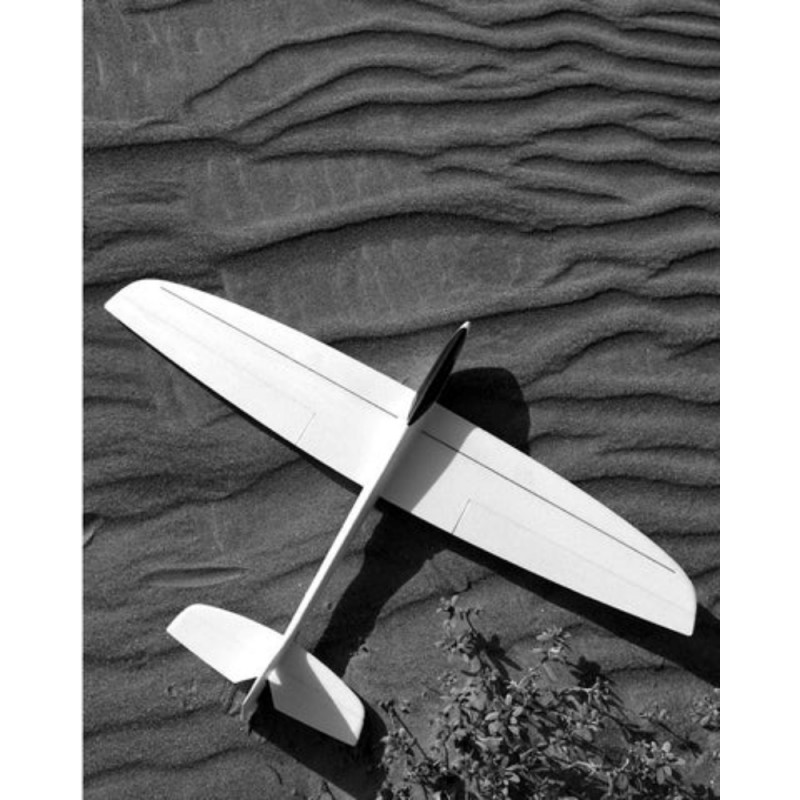

KIT FEATURES

The Ahi's purposeful layout and shape make for a fully capable aerobatic sloper with a groovy pattern-like feel and precision, allowing you to efficiently connect maneuvers in less lift. Carefully proportioned and balanced control surfaces provide predictable, yet aggressive control authority.

• "ARG" Almost Ready to Glide - Interlocking design ensures quick assembly
• Wide flight envelope for smooth and predictable gliding or highly inspired freestyle aerobatics
• Precision-molded EPO foam and composite parts ensure a lightweight, durable airframe
• Highly efficient and nimble design makes the most out of light wind conditions
• Carbon fiber canopy is held magnetically for easy access to radio compartment
• Ballast compartment - quickly adapt to varying wind conditions
• Laser-cut plywood servo tray and battery hold-down
• Integrated landing skid for those rougher touch downs
• Designed to inspire!
