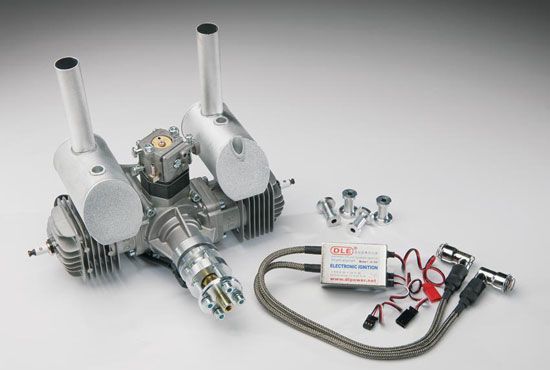

DLE60 60cc Twin Cylinder Gas Engine

If you're looking for smooth, consistent performance in a 60cc engine, look no further. The DLE-60cc Twin delivers that and more! Its twin opposed cylinders provide very smooth operation, while keeping weight low and producing the power your bird requires. Electronic ignition, spark plug and Pitts style mufflers are included.

Additional Notes:
We have tested the DLE60 in a customers Aeroworks Edge 540 with outstanding results. The engine is smoother, quieter and sounds much better then the DLE55. With the Edge 540 no additional nose weight was needed and installation only required cut outs for the spark plug caps on either side of the aircraft cowl.

Tech Notes


Specifications
Displacement: 61 cc (3.7 cu in)
Bore (pending confirmation): 1.42 in (36 mm)
Stroke (pending confirmation): 1.18 in (30 mm)
Weight: Engine: 3.43 lb (1555 g)
Muffler: 2.82 oz / 3.00 oz (80 g / 85 g)
Ignition Module: 7.44 oz (211 g)
Output: 5.5 hp @ 8,500 rpm
Includes: Electronic ignition, mufflers (2), spark plug & engine standoffs

Requires: Unleaded gasoline, oil, ignition battery & propellers
