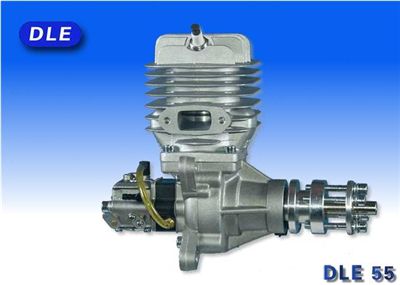

DLE55 55cc 2-Stroke Petrol Engine

The well known DLE-55 has proven itself the world over as a solid power plant for large scale r/c planes.
Rear mounted carburettor and large transfer ports make this a beefy power plant able to deliver over 5HP and reach over 9,000rpm.

This is the real and genuine DLE-55 - beware of fakes and upgraded DL50s. Beware of cheaper fakes and motors bought from Chinese clearing houses that don't offer warrantees - they are out there.

Reliability , Smooth Idle & Silky transitions all at an Incredible Price!

Brand New DLE55 engine 55cc Petrol RC aircraft engine.
NEWEST Version - version:A-01 ignition module

Made by DL, DL brought you the DL50 we all loved for quality & reliability, they have now brought us an even better product the DLE55 55cc engine, Lighter and with more power !

The key main difference are:
50 ( DL50 ) to 55 ( DLE55 )
5.2 ( DL50 ) to 5.5hp ( DLE55 )
1350g ( DL50 ) to 1310g ( DLE55 )

The bolts used on the DL50 / DL55 are all 5mm metric sizes.
Mounting bolt pattern is 80mm wide and 67mm high (centre to centre)

Distance from back of mounting lugs to face of prop hub is 102mm, and the supplied standoffs are 68mm
Total length of motor from back face of stock standoffs to front face of prop hub is 170mm

The DL-50 and DL55 share the same prop hub and muffler mounting dimensions as the popular DA-50R

The DLE55 is a 55cc 2 stroke aircraft engine fitted with a walbro pump carburetor which includes
a choke for easy starting assistance along with a auto advancing ignition module.

PACKAGE INCLUDES:
Motor
Muffler
Spark plug
Machined Aluminium Stand-off motor mounts
Ignition system

DLE-55 55CC Specs:.
Capacity : 55cc
Configuration : 2C single cylinder air cooled
Carburetor : Walbro pump ( WT889 )
Ignition : CDI ignition ( AUTO ADVANCE )(120g)
Ignition Power supply : 4.8-6V
Weight : 1350g including ignition and muffler
Maximum output :5.5HP/7500rpm
Maximum RPM : 9000 rpm
Static thrust : 13.6kg ( 30 pounds )
Idle RPM : 1350 rpm
PETROL / GASOLINE : Unleaded 2 stroke 30:1 � 45:1 oil (synthetic is recommended)
MIX : 1:30 to 1:45
Recommended oil : 2 stroke racing oil and mix 1:45
Prop selection : 22�8, 22�10, 23�8, 23�10
14.2Kg Pulling Force / 100 meters Altitude
12.5Kg Pulling Force / 1800 meters Altitude
Exhaust Amount :55.6cm3
diameter � stroke : 45mm�35mm
Ratio of compression:7.6:1
