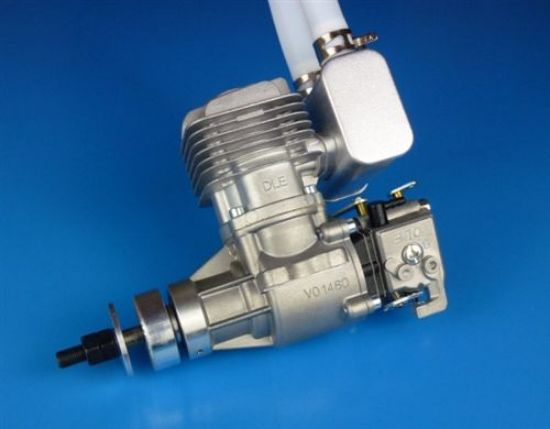

DLE20-RA 20CC Gas Engine

This is the DLE 20cc Gasoline Powered Engine with Electronic Ignition
and Rear Mounted Carburetor.


Performance
2.5HP/9000rpm
Idle Speed: 1750 rpm/min
6.0Kg Static Thrust/ 100 meters Altitude
5.3Kg Static Thrust/ 1800 meters Altitude
Recommended Propellers: 14x10; 15x8; 16x6; 16x8;17x6
Ignition Battery: 4.8v >= 1200mah
Replacement Spark Plug: NGK CM6
Plug Gap: 0.46 to 0.51mm (0.018" to 0.020): Installation Torque: 7 to 8 ft-lbs

Specifications
Displacement: 30.5cm3
Diameter × Stroke: 32mm×25mm
Compression Ratio: 10.5:1
Fuel 2C Gasoline: 30:1 - 45:1 (30:1 for breakin, 40:1 quality synthetic thereafter)
Weight: Main Engine - 650g; Muffler - 50g; Ignition device - 120g

Includes-
•DLE-20cc Engine
•Auto Advancing Electronic Ignition
•Muffler, Gasket and Bolts
•DLE Pump Carby & Composite Throttle arm extension

The DLE 20 has a rail mount set up - same as your standard nitro motor.

Thread size: 8mm
