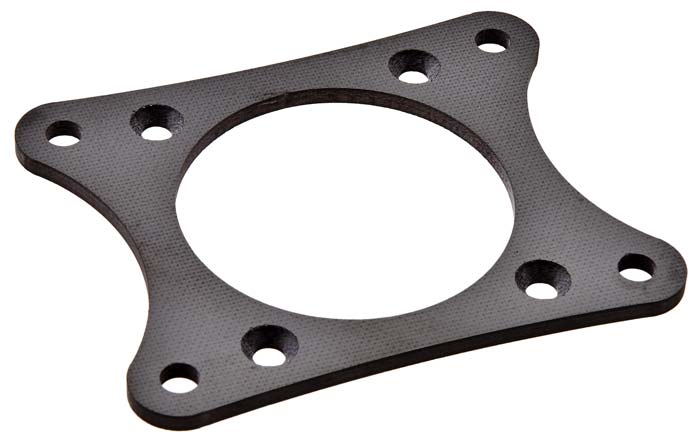

DLE Engine Mount DLE-40 DLEG4035

Layered carbon fiber construction
Fastens to crankcase, and with the standoffs holds the engine to the
firewall of the airplane

Engine Mount for the DLE 40cc Twin Cylinder Gasoline Engine

Distance between center of Outer Holes: 2.1" (54mm) vertical
Distance between center of Outer Holes: 2.8" (70.5mm) horizontal
Distance between center of Inner Holes: 2.0" (50.5mm) vertical
Distance between center of Inner Holes: 1.7" (44.5mm) horizontal
Thickness: 0.12" (3.2mm)
