DLE-111 111cc Twin Cylinder Gas Engine

Giant-scale power to go.

Mount it and start it, and the DLE-111 is ready to deliver the smooth, low-vibration operation of a horizontal twin and an impressive 11.2 horsepower at the top end. That translates to a maximum of 56.2 pounds of static thrust, a gain of 7% over the DLE-100. It's the maximum of gas power and convenience for a minimum of time and money.

Specifications:
Stock Number: DLEG0111
Displacement: 111 cc (6.773 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 6.3 lb (2.86 kg)
RPM Range: 1,300-8,500
Output: 11.2 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller

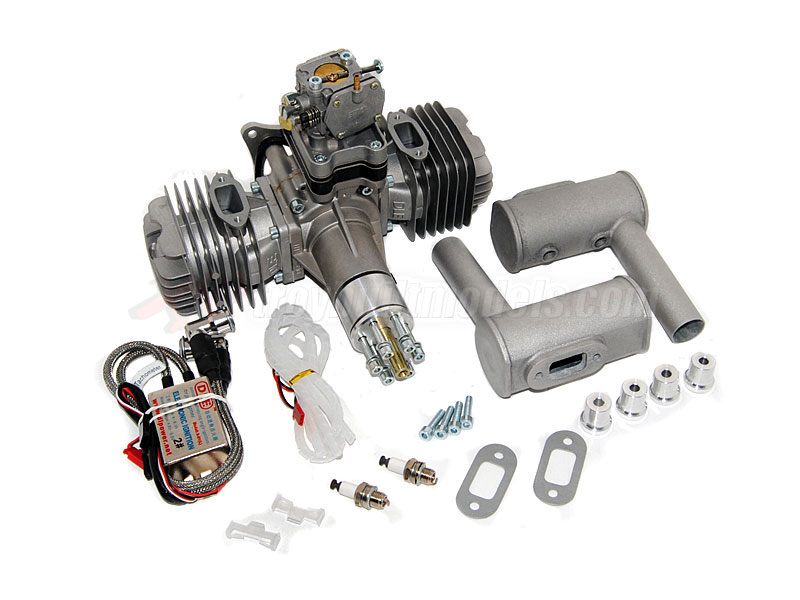

Includes: electronic ignition, mufflers, spark plugs, gaskets, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 26x12, 27x10 & 28x10

Technical Data:
Manifold: Double V-type, reed-valve, bottom induction
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulators.)
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (individual): Engine: 88.2 oz (2,500 g); Exhaust (2): 7.1 oz (200 g); Ignition: 3.9 oz (110 g)

Recommended Products:
DLEQ1111 DLE Engines Propeller Drill Guide DLE111
HCAM6351 Hobbico HydriMax Ultra 6V 2000mAh NiMH Pack
KSFP4195 Klotz 2-Cycle Synthetic 32:1 � 50:1 Gas R/C ModeLube
XOAQ2612 Xoar 26x12 Beech Propeller

Recommended Options:
FPWP4195 FlightPower EON-X Lite 7.4V 2100mAh 25C LiPo Pack
FPWM0290 FlightPower 5A Voltage Regulator (if FPWM4195 is used.)
HCAM6435 Hobbico LiFeSource 6.6V 1100mAh 10C LiFe Pack
XOAQ2710 Xoar 27x10 Beech Propeller
XOAQ2810 Xoar 28x10 Beech Propeller
