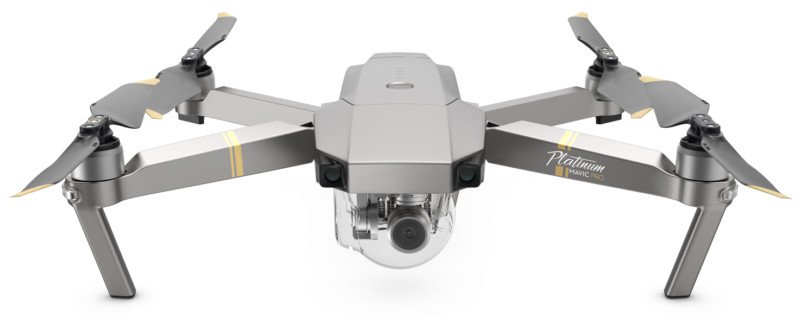

DJI Mavic Pro Platinum Drone

Contents
1x Aircraft
1x Remote Controller
1x Intelligent Flight Battery
1x Charger
1x Power Cable
4x Propellers (Pair)
3x RC Cables
1x Gimbal Cover
1x Gimbal Clamp
1x 16GB MicroSD Card
1x Micro USB Cable
4x RC Cable Slider

Flight Time
30 Mins

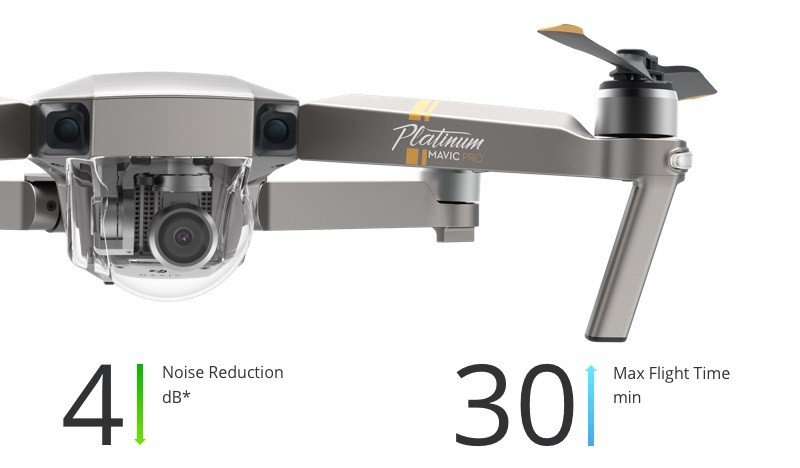

Noise Reduction
4dB

Video Resolution
4K

Control Range
7KM

Gimbal
3-Axis

Camera Resolution
12MP

Aircraft

Folded
Height
83mm
Width
83mm
Length
198mm

Diagonal Size (Propellers Excluded)
335 mm

Weight (Battery & Propellers Included)
1.62 lbs (734 g) (exclude gimbal cover)
1.64 lbs (743 g) (include gimbal cover)

Max Ascent Speed
16.4 ft/s (5 m/s) in Sport mode

Max Descent Speed
9.8 ft/s (3 m/s)

Max Speed
40 mph (65 kph) in Sport mode without wind

Max Service Ceiling Above Sea Level
16404 feet (5000 m)

Max Flight Time
30 minutes (no wind at a consistent 15.5 mph (25 kph))

Max Hovering Time
27 minutes (no wind)

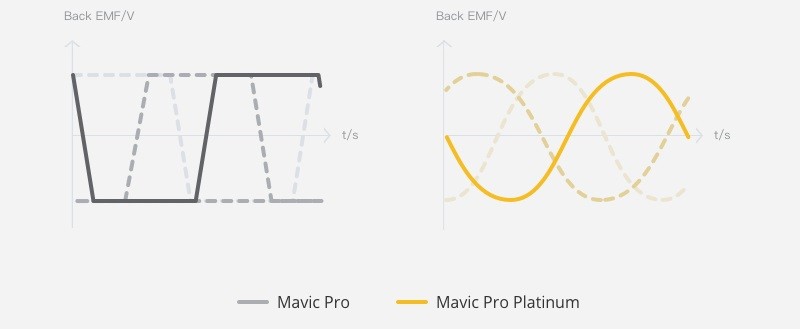

ESC(Electronic Speed Controller)
FOC

Max Flight Distance
9.3 mi (15 km, no wind)

Operating Temperature Range
32° to 104° F (0° to 40° C)

Satellite Positioning Systems
GPS / GLONASS

Hover Accuracy Range
Vertical
+/- 0.1 m (when Vision Positioning is active) or +/-0.5 m
Horizontal
+/- 0.3 m (when Vision Positioning is active) or +/-1.5 m

Operating Frequency
FCC
2.4-2.4835GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
CE
2.4-2.4835GHz; 5.725-5.850 GHz
SRRC
2.4-2.4835 GHz;5.725-5.850 GHz

Transmitter Power (EIRP)
2.4GHz
FCC:<=26 dBm; CE: <=20 dBm; SRRC:<=20 dBm; MIC:<=18 dBm
5.2 GHz
FCC:<=23 dBm
5.8 GHz
FCC:<=23 dBm; CE <=13 dBm; SRRC: <=23 dBm; MIC: -

Camera

Sensor
1/2.3" (CMOS), Effective pixels:12.35 M (Total pixels:12.71M)

Lens
FOV 78.8° 28 mm (35 mm format equivalent) f/2.2
Distortion < 1.5% Focus from 0.5 m to 8

ISO Range
Video
100-3200
100-1600

Electronic Shutter Speed
8s -1/8000 s

Image Size
4000x3000

Still Photography Modes
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval

Video Recording Modes
C4K: 4096x2160 24p
4K: 3840x2160 24/25/30p
2.7K: 2720x1530 24/25/30p
FHD: 1920x1080 24/25/30/48/50/60/96p
HD: 1280x720 24/25/30/48/50/60/120p

Max Video Bitrate
60 Mbps

Supported File Systems
FAT32 ( = 32 GB ); exFAT ( > 32 GB )

JPEG, DNG

Video
MP4, MOV (MPEG-4 AVC/H.264)

Supported
SD Cards Micro SD
Max capacity: 64 GB. Class 10 or UHS-1 rating required

Operating Temperature Range
32° to 104° F ( 0° to 40° C )

Remote Controller

Operating Frequency
2.4 GHz to 2.483 GHz

Max Transmission Distance
FCC Compliant: 4.3 mi (7 km);
CE Compliant: 2.5 mi (4 km)
SRRC Compliant: 2.5mi (4 km)
MIC Compliant: 2.5 mi (4 km) (Unobstructed, free of interference)

Operating Temperature Range
32° to 104° F ( 0° to 40° C )

Battery
2970mAh

Transmitter Power (EIRP)
FCC:<=26 dBm
CE:<=20 dBm
SRRC: <=20 dBm
MIC: <=18 dBm

Operating Current/Voltage
950mA @ 3.7V

Supported Mobile Device Size
Thickness Supported
6.5-8.5mm
Max length
160mm
Supported USB port types
Lightning
Micro USB(Type-B)
USB(Type-C)

Wi-Fi

Operating Frequency
2.4G/5G

Max Transmission Distance
80 m(Distance), 50m(Height) (Unobstructed, free of interference)

Max Speed
14 km/h (9 mph)

Max Ascent Speed
6.6 ft/s(2 m/s)

Max Descent Speed
3.3 ft/s(1 m/s)

Charger

Voltage
13.05 V

Rated Power
50 W

Intelligent Flight Battery

Capacity
3830 mAh

Voltage
11.4 V

Battery Type
LiPo 3S

Energy
43.6 Wh

Net Weight
Approx.0.5 lbs(240 g)

Charging Temperature Range
41° to 104° F ( 5° to 40° C )

Gimbal

Controllable Range
Pitch
-90° to +30°
Roll
0° or 90° (Horizontally and vertically)

Stabilization
3-axis (pitch, roll, yaw)

Vision System

Vision System
Forward Vision System
Downward Vision System

Obstacle Sensory Range
Precision measurement range
2 ft (0.7 m) to 49 ft (15 m)
Detectable range
49 ft (15 m) to 98 ft (30 m)

Operating Environment
Surface with clear pattern and adequate lighting (lux > 15)

Velocity Range
=22.4 mph (36 kph) at 6.6 ft (2 m) above ground

Altitude Range
1 - 43 feet (0.3 - 13 m)

Operating Range
1 - 43 feet (0.3 - 13 m)

App/Live View

Mobile App
DJI GO 4

Live View Quality
720p @ 30fps, 1080p @ 30fps(Remote Controller)
720p @ 30fps(Wi-Fi)
720p @ 60fps, 1080p @ 30fps(DJI Goggles)

Latency
160-170ms (depending on conditions and mobile device)

Required Operating Systems
iOS 9.0 or later
Android 4.1.2 or later
