The Mavic Air 2 is DJI's newest edition to the Mavic series, boasting with an impressive 34 minutes flight time, 48 MP camera and the ability to film 4k at 60fps.
Flight Time | Environment Sensing | Video Resolution | Internal Storage | Gimbal | Effective Pixels |
| 34 min | 3-Directional | 4k 60 fps | 8GB | 3-axis | 48mp |
Features
3-Axis Gimbal Camera
The Mavic Air 2 is the most portable DJI drone to house a 3-axis mechanical gimbal, with its angular vibration range reduced to 0.005°. Set in a triangular formation, gimbal dampeners help create even steadier shots.
4K Video Resolution at 60 Frames Per Second Video
Master creative aerial shots thanks to effortlessly smooth 4K/60fps video. The D-Cinelike flat colour profile retains more information for post-processing. The HEVC (H.265) video codec records more image information, uses less storage, and preserves the dynamic range and detail of your footage, ensuring next-level content
HDR Video Dynamic by Default
The secret to incredible HDR video is a high-performance Quad Bayer image sensor. A single frame separates exposure levels in different areas, accurately capturing light and dark details. The images are layered to create a colourful, balanced, and eye-catching picture with higher dynamic range.
48MP Stills
The Mavic Air’s onboard camera integrates a 1/2” 48-megapixel CMOS sensor and an f/2.8 lens with a 35-mm equivalent focal length of 24 mm to shoot high-quality photos and videos. The 48MP camera supports a high megapixel count that allows for vivid details even when you zoom in on an image.
SmartPhoto
Mavic Air 2 features SmartPhoto, which integrates scene recognition, HyperLight, and HDR into one mode for optimal results. Scene recognition optimizes different camera parameters for various scenes and supports intelligent recognition of five categories: sunset, skies, grass, snow, and trees
HDR Panorama
Mavic Air 2 offers DJI’s most advanced panorama mode, with a higher dynamic range and colours that are vivid and incredibly accurate.
8 GB Internal Storage
In addition to a Micro SD card slot, 8 GB of internal storage let you save photos and videos directly to the aircraft and export files through its USB 3.0 Type-C port.
Intelligent Features
Mavic Air 2 combines a powerful camera with intelligent shooting modes for stunning results. Creative aerial photography has never been this easy.
FocusTrack
Professional-quality footage is effortless thanks to FocusTrack. This easy-to-use suite of intelligent tracking modes includes Active Track 3.0, Spotlight 2.0, and Point of Interest 3.0, allowing you to unleash your creativity.
8K Hyperlapse
Mavic Air 2 supports Hyperlapse in 8K, allowing you to warp time and space for especially stunning footage. Best of all, you can achieve this shot without complex post-processing. Choose from Free, Circle, Course Lock, and Waypoint modes, select the shooting location, and the DJI Fly app will do the rest.
QuickShots
Capture cinematic video clips automatically with QuickShots. With just a few taps, Mavic Air 2 plans and flies a complicated aerial route for a professional-quality shot. Add music, effects, and filters with super-intuitive Story templates so you can share your masterpiece directly to social media.
Flight and Safety
OcuSync 2.0
OcuSync 2.0 has a video transmission distance of up to 10 km and can also deliver 1080p FHD resolution live stream directly from the drone’s camera. Enjoy more freedom for exploring and more clarity for that perfect shot.
2.4/5.8Ghz Dual Frequency
Mavic Air 2 supports 2.4/5.8GHz dual-frequency communication and automatically switches to the best channel with the lowest interference in real-time. This significantly improves the aircraft's anti-interference ability in challenging environments, increasing flight safety.
Battery and Flight
Stay in the air long enough to get the perfect capture with an impressive battery life of up to 34 minutes and pull off epic, fast-paced shots with a max flight speed of 68 kph in Sport mode. The longest flight time in DJI consumer drone lineup, the DJI Mavic Air 2 has a 3500 mAh battery capacity which keeps it up in the air for a longer period.
Obstacle Avoidance
Mavic Air 2 perceives its environment in three directions: forward, backward, and downward. An auxiliary light improves visibility, and the extra layer of security that obstacle avoidance provides is ideal for pushing the limits of what is possible.
APAS 3.0
Advanced Pilot Assistance Systems (APAS) 3.0 utilizes an advanced mapping technology for smooth following and reliable obstacle avoidance in complex scenarios. Obstacle avoidance performance and automatic flight planning has dramatically improved compared to previous generations, increasing safety and providing more options.
DJI Fly App
The DJI Fly app makes creating flawless videos more convenient than ever. The built-in DJI Mimo app editor provides manual settings, advanced functions, and intuitive templates, allowing you to create professional compositions in seconds.

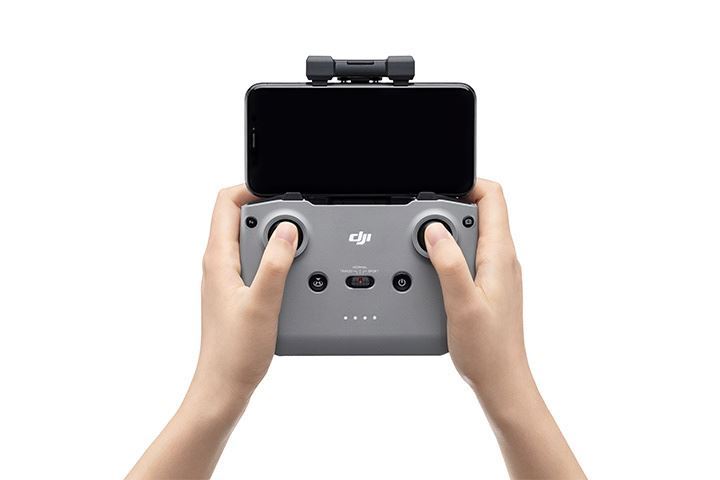

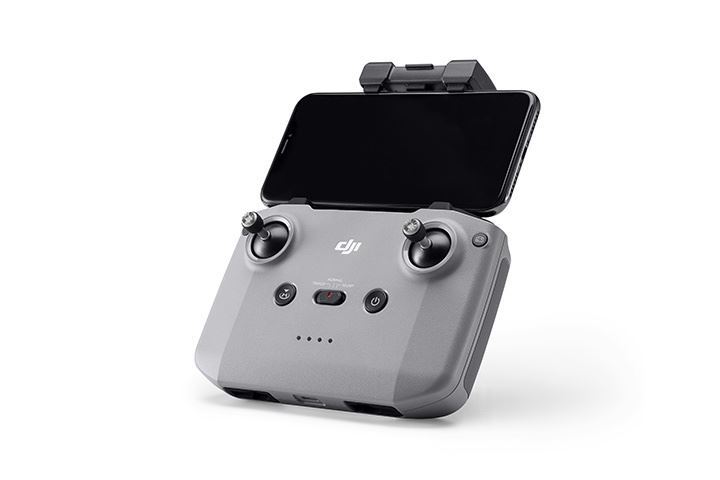

Remote Controller
The newly designed remote controller features an ergonomic design for a more comfortable grip and boasts an impressively long battery life of 240 minutes. [7] The new clamp makes attaching smartphones fast and easy, while integrated antennas significantly improve user experience.
Highlights
48 MP effective pixels
4K @ 60 fps video
ActiveTrack 3.0
Occusync 2.0 10km FCC
34-minute Flight Time
Product Specifications
Aircraft
Weight: 570 g
Size Folded:
180×97×84 mm (Length×Width×Height)
Unfolded 183×253×77 mm (Length×Width×Height)
Diagonal Distance: 302 mm
Max Ascent Speed: 4 m/s (S Mode) 4 m/s (N Mode)
Max Descent Speed:
3 m/s (S Mode)
3 m/s (N Mode)
5 m/s (S Mode during a sharp descent)
3 m/s (all modes at elevations over 4500 m)
Max Service Ceiling Above Sea Level: 5000 m
Max Flight Time: (without wind) 34 minutes
Max Hover Time: (without wind) 33 minutes
Max Flight Distance: 18.5 km
Max Horizontal Flight Speed: 19 m/s (S Mode)<br>12 m/s (N Mode)<br>5 m/s (T Mode)
Max Wind Resistance: 8.5-10.5 m/s (Level 5)
Max Tilt Angle: 35°(S Mode)<br>20°(N Mode)*<br> * 35° under heavy winds
Max Angular Velocity: 250°/s (S Mode)<br>250°/s (N Mode)
Operating Temperature Range: 0° to 40°C (32° to 104°F)
Operating Frequency: 2.400-2.4835 GHz<br>5.725-5.850 GHz
Transmitter Power (EIRP):
2.400-2.4835 GHz
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.725-5.850 GHz
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm
Hovering Accuracy Range Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GPS positioning)
Horizontal:
±0.1 m (with vision positioning)
±1.5 m (with GPS positioning)
Propellers: Quick release, low noise, folding
Arms: Folding
Satellite Systems: GPS+GLONASS
Compass: Single Compass
IMU: Single IMU
Internal Storage: 8 GB
Vision System
Forward Precision Measurement Range: 0.35-22.0 m Detection Range: 0.35 to 44 m
Effective Sensing Speed: 12 m/s Field of View (FOV): 71° (horizontal), 56° (vertical)
Backward
Precision Measurement Range: 0.37-23.6 m
Detection Range: 0.37-47.2 m
Effective Sensing Speed: 12 m/s
Field of View (FOV): 44° (horizontal), 57° (vertical)
Available Downward Sensors: Dual Vision Sensors + Time of Flight Sensors (ToF)
Downward
ToF Measurement Range: 0.1-8 m
Hovering Range: 0.5-30 m
Vision Sensor Hovering Range: 0.5-60 m
Left/Right: None
Downward Auxillary Light: Single LED
Obstacle Avoidance System: Advanced Pilot Assistance Systems (APAS) 3.0
Camera
Sensor: 1/2" CMOS
Effective Pixels: 12 MP and 48 MP
Lens FOV: 84°
Equivalent Focal Length: 24 mm
Aperture: f/2.8
Focus Range: 1 m to ∞
ISO Video: 100-6400
ISO Photo (12 MP): 100-3200 (Auto) 100-6400 (Manual)
ISO Photo (48 MP): 100-1600 (Auto) 100-3200 (Manual)
Max Photo Resolution: 48 MP 8000×6000 pixel
Photo Modes Single: 12 MP and 48 MP
Burst: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
SmartPhoto: Scene Recognition, HyperLight, and HDR<br>HDR
Panorama:
Vertical (3×1): 3328×8000 pixels (Width×Height) Wide (3×3): 8000×6144 pixels (Width×Height)
180° Panorama (3×7): 8192×3500 pixels (Width×Height)
Sphere (3×8+1): 8192×4096 pixels (Width×Height)
Photo Formats: JPEG/DNG (RAW)
Video Resolution and Frame Rates
4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
2.7K: 2688×1512 24/25/30/48/50/60 fps
FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
4K Ultra HD HDR: 3840×2160 24/25/30 fps
2.7K HDR: 2688×1512 24/25/30 fps
FHD HDR: 1920×1080 24/25/30 fps
Colour Profiles: D-Cinelike, Normal
Video Formats: MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)
Max Bitrate: 120 Mbps
Supported SD Cards: Supports a microSD with the capacity of up to 256 GB
Supported File Systems: FAT32 and exFAT
Zoom: Not available
Gimbal
Stabilization: 3-axis (tilt, roll, pan)
Mechanical Range Tilt: -135° to 45°<br>Roll: -45° to 45°<br>Pan: -100° to 100°
Controllable Range Tilt: -90° to 0°(Default)<br>-90° to 24°(Extended)
Max Controllable Speed: (tilt) 100°/s
Angular Vibration Range: ±0.01°
Battery
Capacity: 3500 mAh
Voltage: 11.55 V
Charging Voltage Limit: 13.2 V
Battery Type: LiPo 3S
Energy: 40.42 Wh
Weight: 198 g
Charging Temperature: 5° to 40°C (41° to 104°F)
Max Charging Power: 38 W
Remote Controller
Remote Controller Transmission System: OcuSync 2.0
Supported Mobile Device Connectors: Lightning, Micro USB (Type-B), USB Type-C
Max. Supported Mobile Device Size: 180×86×10 mm (Height×Width×Thickness)
Operating Temperature: 0° to 40°C (32° to 104°F)
Transmitter Power (EIRP):
2.400-2.4835 GHz
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.725-5.850 GHz
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm
Charging Input: 100-240 V, 50/60 Hz, 1.3 A
Charging Output
Charging Port: 13.2 V⎓2.82 A
USB Port: 5 V⎓2 A
Voltage: 13.2 V
Rated Power: 38 W
Operating Current/Voltage: 1200 mA@3.7V (Android)<br>700 mA@ 3.7 V (iOS)
In the box
Aircraft x 1
Remote Controller x 1
Intelligent Flight Battery x 1
Battery charger x 1
AC Power Cable x 1
Low-Noise Propellers (Pair) x 3
RC Cable (Lightning Connector) x 1
RC Cable (Standard Micro USB Connector) x 1
RC (USB Type-C Connector) x 1
Gimbal Protector x 1
Communication Cable (USB 3.0 Type-C) x 1
Spare Control Sticks (Pair) x 1
