DetrumTech 5.8G 48CH 600mW FPV Video Transmission

Introduction

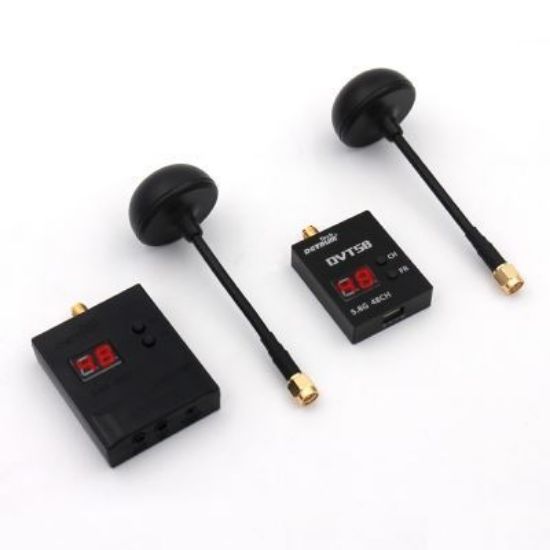

This is a 5.8GHz 600mW wireless transmitter and receiver kit, which is for synchronous video transmission. It is suitable for first person view (FPV) use. DVT58 600mW is the transmitter and DVR58 is the receiver. There are 48 channels adjustable. Compared with DVT58 200mW and DVT58 25mW, DVT58 600mW provides longer transmission distance, as far as 1.5km.

Features

DVT58 600mW: - The output power of DVT58 is 600mW. The transmission distance is as far as 1.5km - 48 channels adjustable, the channel number can be displayed on the LED digital displays - Mini size, lightweight and heat-sinking aluminum alloy shell, portable for the aircraft - Adopt omnidirectional mushroom antenna to transmit the signals

- Integrated wires and plugs, easy to install - Multiple receivers can be linked at the same time, make it possible that everyone can hold a display to watch the video separately

DVR58: - 48 channels adjustable, the channel number can be displayed on the LED digital displays - DVR58 has a 12V/1A output interface, providing a stable voltage for the display

Specifications

DVT58 600mW Transmitter

Working Frequency: 5.8GHz ISM Output Power: 600mW Channel: 48 CH Input Voltage: DC 7V~17V Supply Current: 300mA/12V Antenna Connector: 50Ω SMA Antenna Gain: 2dBi Video Input Impedance: 75Ω Video Band Width: 8MHz Video Format: NTSC/PAL Working Temperature: -40~85℃ Dimension (L×W×H): 49.7×34.1×10.6mm Weight: 16g (without antenna)

DVR58 Receiver

Working Frequency: 5.8GHz ISM Channel: 48 CH Input Voltage: DC 7V~17V Supply Current: 80mA/12V Output Voltage: 12V Antenna Connector: 50Ω SMA Antenna Gain: 2dBi Video Output Impedance: 75Ω Working Temperature: -40~85℃ Dimension (L×W×H): 62.8×45×14.5mm Weight: 28g (without antenna)

Channel and frequency table

Packing List

Package contents in DVT58 600mW box:

DVT58 600mW ×1 Mushroom Antenna (Tx) ×1 4-pin connector to DuPout connector and JST connector Cable ×1

Package contents in DVR58 box:

DVR58 ×1 Mushroom Antenna (Rx) ×1 DC3.5mm to DC5mm Cable ×1 DC3.5mm to XT60 Cable ×1 3.5mm Stereo Plug to RCA Plug Cable ×1
