Detrum 5.8G Mushroom Video transmission Antenna DTM-DVA01

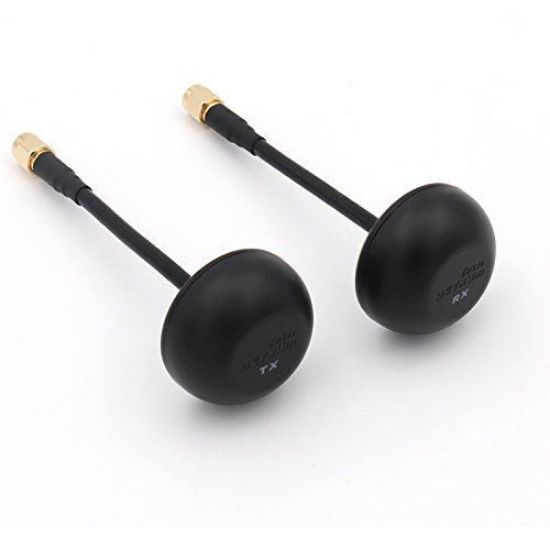

This is a 5.8G omnidirectional mushroom antennas set for FPV use.

Tx is the transmitting antenna, Rx is the receiving antenna, with SMA-Male connector.

When using with the 5.8G transmitter and receiver, can improve the video stability and avoids multipath effect and tiny blind angle.

Specification Frequency: 5.4G-5.95 GHz Impedance: 50Ω Nominal V.S.W.R: 1.92:1 Max Return Loss: -10 dB Max Radiation: Omnidirectional Gain: 2dBi Polarization: Linear, Vertical Connector: SMA-Male Antenna Material: TPE / PC / Cu Cable Type: RG-141 Operating Temp.: -10 ~ +60℃ Storage Temp.: -10 ~ +70℃ Packing List Tx Antenna ×1 Rx Antenna ×1
