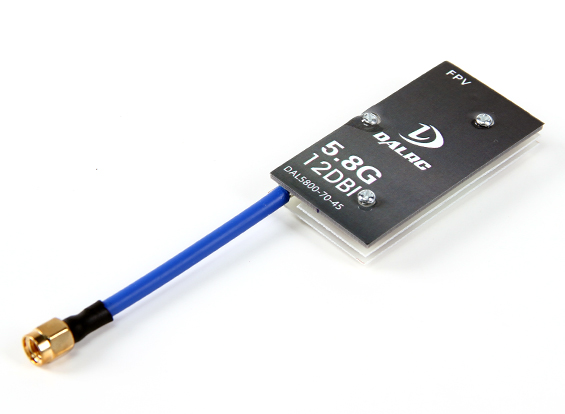

5.8GHz 12dBi Wide Angle Directional Patch Antenna (SMA)

This type of antenna boasts an amazing operational angle of 45~70 degrees which gives excellent coverage at normal operating distances. This antenna operates in the 5645~5945MHz frequency band with a high gain and a low VSWR,

The compact design of the antenna stem can be bent to any angle and will then stay there.
This is an easy to use yet powerful plate antenna that will improve the range of your FPV set up which in turn will improve your FPV experience without breaking the bank.

Features:
• 45~70° wide operating angle
• Improves range
• Lightweight (32g)
• Easy to install

Specs:
Frequency: 5645~5945MHz
Gain: 12dBi
VSWR: ≤1.5
Polarization: Vertical
Backward: ≤25dB
3dB Horizontal Beam width: 70°
3dB Vertical Beam width: 45°
First Side-lobe Suppression: ≤13dB
Max Power: 50 watt
Resistance: 50 Ω
Lightning Protection: DC grounded
Connector: SMA
Dimensions: 62x32x6mm
Weight: 21g
Material: Composite electromagnetic plate
