Compass Model 7HV V2 Ultimate Edition w/Brushless Motor (510kV)

This is the Compass Model 7HV FBL V2 Ultimate Edition Flybarless Helicopter Kit. The 7HV is a unique 700 class electric helicopter that was designed by Sebastian Zajonz. Sebastian incorporated his years of experience into the design, blending a variety of innovative features into a 700 class bird that avoids unnecessary complexity. These features include an automatic belt tensioner, a sliding battery tray for fast and easy battery changes, a thrust bearing to protect the drive bearings and the swash plate, and the rotor head geometry has been optimized for flybarless operation. The single-stage transmission with large diameter mod 1.0 gears can handle the punishment of the most powerful motors and provides efficient power transfer. The direct servo-to-swash linkage rods are equal length to provide linear movement, while eliminating the angle-error and uneven movement that is found on other models.

Plus, the servos, speed controller and motor have been placed at the height of the tail boom, and the battery is positioned close to the centre of gravity. This arrangement provides a high centre of gravity, so the 7HV can perform efficient manoeuvres and can fully utilize modern flybarless systems, yielding incredible performance and great results.

Included V2 Ultimate Edition Upgrade Parts:

• Delrin Helical Style 127T Main Gear
• 14T Helical Style Pinion
• Quick Release Canopy Mounts
• V2 Pitch Links with Set Screw
• 6mm Tail Rotor Shaft
• Metal Tail Pitch Control Arm
• Metal Tail Pitch Slider
• Larger Blade Grips
• 115mm Carbon Tail Rotor Blades
• Battery Tray Rail
• Headbutton
• Brushless Motor (510kV)


Features:

• Automatic belt tensioner
• Sliding battery tray
• Mod 1.0 Gears
• Optimized for flybarless
• High centre of gravity

  Specifications:
  Length: 1372mm
  Height: 403mm
  Rotor diameter: 1560mm
  Motor pinion: 14T
  Takeoff weight: ca. 4.3 - 5.1kg
  Motor type: Brushless Outrunner
  Battery size: 12S LiPo (2 x 6S) 4000-6000mAh
  Rotor blade size: 690-710mm

  Needed to Complete:

• Helicopter Transmitter & Receiver
• (3) Cyclic Servos
• (1) Tail Servo
• 700 Class Helicopter ESC
• (2) 6s 4000-6000mAh LiPo Batteries & Charger
• Flybarless Control Unit

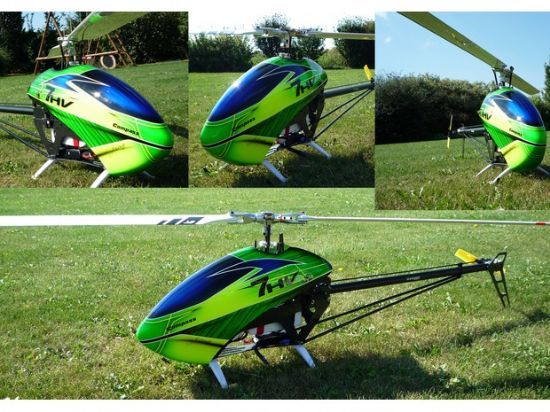

7HV Ultimate kits now include the new green canopy as pictured below.
