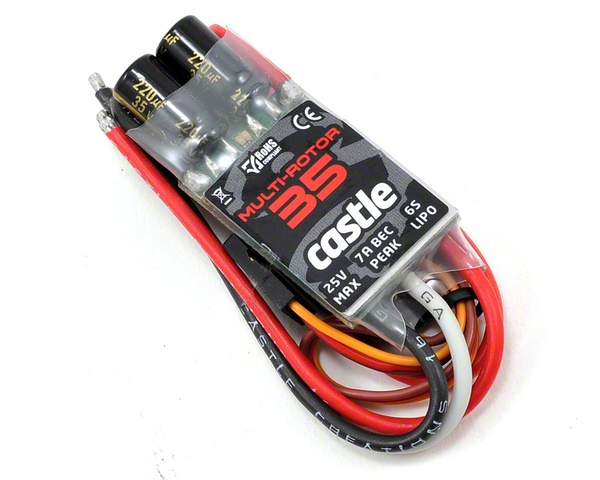

Castle Creations 010-0137-00 Multirotor 35A Expansion Pack NO BE

Be the first to review this product

Manufacturer: Castle Creations

Availability: 2 in stock

SKU: 010-0137-00

Old price: $62.50

Price: $45.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

QuadPack 35

*This package contains one Multi-Rotor 35 with no BEC.

This 35 amp Multi-Rotor ESC is equipped with an ESC without a BEC. Each ESC has optimized firmware specifically designed for Quadcopter and other Multi-Rotor platforms. Refresh rates up to 490 Hz gives your platform optimum stability and maneuverability without missing a beat. QuadPack 35 comes preprogrammed for Multi-Rotor platforms and is recommended for platforms ranging from 450 to 650 sizes pulling up to 35 amps** and running up to 6S LiPo. As with all Castle ESCs, this product is easily programmable using the Castle Link USB adapter (sold separately).

Input voltage MIN: 2S LiPo MAX: 6S LiPo

Max continuous amperage at full throttle.....35 amps**

BEC voltage (voltage regulator for powering radio and servos)......5.5 volts*

BEC output.......7 amp peak..... 5 amp continuous (always check servo draw prior to first flight)

Dimensions:

Width: 0.88" (22.4mm)

Length: 1.93" (49mm)

Depth: 0.33" (8.4mm)

Weight with wires (each) 0.98 oz. (27.8g)

Weight without wires (each) 0.42 oz (12g)

Items needed for operation or installation

Battery connector and motor connectors sold separately

Programmability Fully programmable Castle feature set using Castle Link USB adapter (sold separately)
