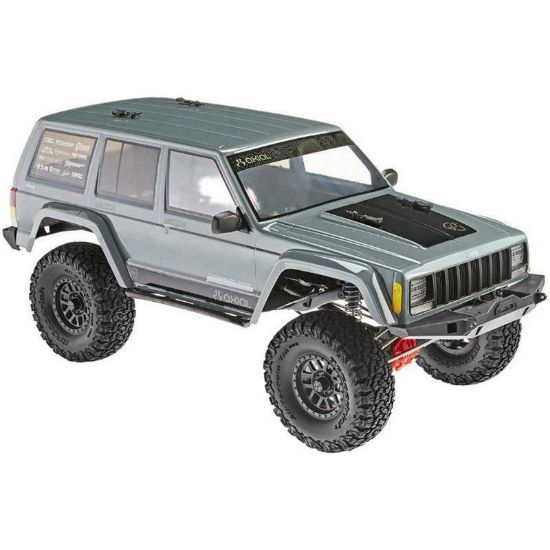

Axial AXID9047 1/10 SCX10 II Jeep Cherokee 4WD Rock Crawler Brushed RTR

Manufacturer: AXIAL
Availability: Out of stock
SKU: AXID9047
$889.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Key Features

  • Chassis: Scale steel C-channel side rails with adjustable body mount, adjustable bumper mounts with swaybar mounting points, mounting points for optional 2-speed and servo winch, adjustable chassis mounted servo system
  • Drive: Full time 4WD locked drivetrain with WB8 HD Wild Boar driveshafts, UVJ style front driveshafts for increased steering angle, full ball bearing drivetrain
  • Transmission: AX10 three gear layout, metal motor plate, adjustable ratio for high speed or competition level crawling speed
  • Slipper Clutch: Dual pad design for added surface area
  • Motor: 35 turn, brush equipped, water resistant, integrated cooling fan
  • Radio: Tactic TTX300 3-channel SLT radio with TR325 Receiver, programmable 3rd channel for operating two speed transmission winches or lights
  • Steering Servo: Tactic TSX45 metal gear, water resistant, 151oz/in torque rating, dual ball bearings
  • ESC: Axial AE-5 waterproof, switchable between LiPo or NiMH operation with a jumper, male star plug lead
  • Spur Gear: 56T 32-pitch Pinion Gear 15T 32-pitch
  • Battery Tray: Easy access front mount, accomodates batteries up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh
  • AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear ratio for reduced torque twist, optional gearing choices, one- piece axle housing, increased clearance, larger load rated bearings for durability, 8° kingpin axle eliminates tire scrub, single piece axle housing, one-piece all metal locker, 10° increment adjustments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously, for less torque twist
  • Body: Painted 2000 Jeep Cherokee
  • Wheels: 1.9" Method, composite plastic construction, black in color
  • Tires: BF Goodrich A/T KO2, S30 compound, 4.65" (118mm) outer diameter, 1.7" (42.5mm) wide
  • Shocks: Coil over, oil filled, steel springs, white in color
  • Suspension: Optimized suspension geometry with integrated mounts upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high- power applications, all steel links
  • Steering: Proper CMS geometry using 3-link setup with panhard bar, 45° steering angle
  • Bumpers: Scale front and rear bumpers and rock sliders licensed by JCR Offroad, lenses in bumpers for light kit (light kit not included)

Video Overview

Needed to Complete
  • 6-cell NiMH or 2-3S LiPo
  • Suitable Charger
  • Building and track equipment
What's in the box?
  • (1) RTR SCX10 II Jeep 4WD All Terrain, Shocks, Wheels, Tires, Painted Body, Rock Sliders, Radio, ESC, Motor, Decals and Waterproof Receiver Box
  • (1) User Manual

Specifications

  • Vehicle
  • Length: 22.1" (561.9mm)
  • Width: 8.9" (228mm)
  • Height: 10.5" (268mm)
  • Wheelbase: 12.3" (312.4mm) adjustable with optional link kits sold separately
  • Ground Clearance: 3.0" (77mm)
  • Weight: 4.5lbs (2.04kg) approximately, with electronics
  • Final Drive Ratio (FDR): 40.44, stock (33.69-54.15 with different spur/pinion gear combinations, extra spur and pinion gears must be purchased separately)
  • Body
  • Length: 20.1" (511mm)
  • Width: 8.3" (211mm) behind front wheels, narrowest point 9.0" (230mm) at rear wheels, widest point
  • Height: 5.4" (137mm)
