Align RM47008XW M470L Multifunctional (Fishing) Drone Super Combo

Align RM47008XW M470L Multifunctional Drone Super Combo
Manufacturer: Align
Availability: 2 in stock
SKU: RM47008XW
$2,499.00

ALIGN brand new M470L with incredible G2P gimbal system composed of excellent locking performance, high resolution brushless motor, and high rigidity and stability. Besides, the new 4K DV features in multiple HQ 4K video recording functions also perfect image processing for outstanding photos and videos edition. The new VTD1 1080 HD Digital Video Transmitter which capable of up to 1.5~2 KM video delivery and nearly zero delay.

The revolutionary AP1 multicopter flight control system is composed of the cutting-edge IT industry creates superior performance and ground station system, supporting complex missions including ground monitoring, waypoint planner, intelligent resume control, point of interest, intelligent return home, and task management…etc.

The standard A13 GST high-end transmitter design with a comfortable grip and precision gimbal control. The built-in integration of this new remote control system was developed specifically to allow single button control of multiple functions and to improve flight efficiency. It also supports A13 GST APP system to adjust the parameter settings and self-customized button modes for the best flight performance.

Focus Shots

M470L Sea Duty Mission
M470L Aerial Fireworks Launch
M470L Multifunctional Drone
APSM
APSM
APSM

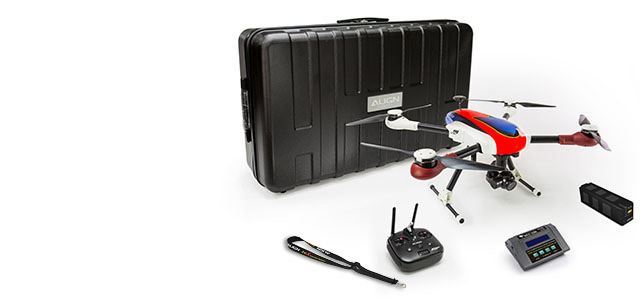

Standard Equipment

●M470 Kit x 1
●G2P 4KDV x 1
●Multicopter Canopy x 1
●7 inch Main Rotor x 4
●BL4213(370KV) Brushless Motor x 4
●External Status LED x 1
●Retract x 2
●Multicopter Brushless ESC x 4
●PCU V2 Power Control Unit x 1
●AP1 Multicopter Flight Controller x 1
●VTD1 1080 HD Digital Video Transmitter x 1
●Multicopter GPS Sensor x 1
●22.2V 6000mAh Battery x 1
●RCC-100 Balance Charger x 1
●A13 GST Transmitter x 1
●A6B Receiver x 1
●3GX Radio Sling x 1
●Hook Control x 1
●ABS Carry Box x 1










Specification

●Airframe : 710mm
●Height : 260mm
●Main Rotor Length : 179mm
●Main Rotor Diameter : 391mm
●Flying Weight (w/o battery) : around 2500g
●Max. Flight Time : 20min/6000mAh
●Maximum Allowed Wind Speed : <10 m/s
●Working Temperature : -20~65°C
●GPS Module : GPS & GLONASS
●Image Sensor : 1/2.3" CMOS, 12 million effective pixels
●Max. Video Resolution : 4K 30FPS
●Max. Video Transmission Distance (w/o interference or block) : <2000m
●Max. Radio Transmission Distance (w/o interference or block) : <1000m
●Max. Control Angle :
  • TILT -140° ~ +29°
  • PAN ±200°
  • ROLL ±30°

Optional Equipment

●Tablet
  • * The AP1 multicopter flight controller system supports iOS V9.0 and higher ; Android V7.0 and higher.
  • * Considering the best working efficiency, the specifications of the tablet or mobile phone are recommended as follows: 4GB RAM, more than 20GB ROM storage space and support 5G Wi-Fi; in order to keep the best and fast performance quality.
  • * The max. dimension of screen bracket is 240x169mm
●Tablet Suggestions:
  Samsung Galaxy Tab A /
  Model Type:SM-T385

  ASUS ZenPad 3 8.0 /
  Model Type:Z581KL


G2P Gimbal Specification

●Input Voltage:DC 12V(3S)
●Operating Current Consumption:<500mA
●Capable of Gimbal Control Angle :
  • TILT -140° ~ +29°
  • PAN ±200°
  • ROLL ±30°
●Temperature Range:-20~80 degrees
●Dimension:109.6x78.8x127.5mm

4K DV Specification

●Image Sensor:1/2.3" CMOS, 12 million effective pixels
●Lens:FOV 90° / Aperture : f/2.8
●Shutter Speed:2 - 1/8000 s
●Photo Size:4000 x 3000 pixels
●Camera Mode:Single Image / Continuous Mode
●Image Format:JPEG
●Video Format:H264 MOV
●Video Resolution:
  • 4K:3840*2160 30fps
  • 2.7K:2716*1524 30fps
  • 1080p:1920*1080 120fps
●Support Memory Card:Micro SD card, SD/TF card
  • SDXC interface support read speeds up to UHS-I Class 10 Micro SD card (60MB/s read/write speed)
  • Support format : FAT32 & ex FAT


AP1 Multicopter Flight Control System Introduction

●The brand new ALIGN AP1 Multicopter Flight Control with superior performance through cutting edge information technologies, utilizing high precision sensors and modern system control subroutines. Also AP1 has built-in supreme algorithm, six-axis fast reaction sensor, magnetic sensor and GPS sensor, providing high stability and the best aerial photography performance.
●Highly integrated ground station support Remote Target Route Planner and Regional Route Planner functions that the system automatic calculate its flight time and flight distance based on customers setup. The ground station will display flight status and record flight data for customer’s reference.
●The G2P Gimbal DV Set and VTD1 1080 HD Digital Video Transmitter specially designed for M470/M480/M690 multicopter for optimal aerial photography mission.

AP1 Multicopter Flight Control System Features

●Supports multicopter configurations: 4 rotors + type, 4 rotors X type, 6 rotors + type, 6 rotors X type.
●Built-in AP1 Multicopter GPS Sensor for precise positioning function support dual GPS system (older version) and triple GPS system (new version).
●Multiple flight modes including manual mode, attitude mode, GPS Angular mode, and GPS Velocity mode.
●Equipped with automatic return home function with remote activation ability from R/C transmitter. Allow to set protection function that when RC transmitter signal is lost, aircraft will automatically fly back to home position or continue working mission.
●Provide two kinds of mission path planners :
  1.Remote Target Route Planner.
  2.Regional Route Planner.
●AP1 provides 3 intelligent flight modes: CFO, HCL, and POI.
●Features two stage battery low voltage protection system; stage 1 provides visual warning through flashing LEDs, stage 2 will initiate automatic return home.
●Provides real-time OSD flight data output function.
●Configuration changes through Android APP.
●Supports ALIGN A.BUS / Futaba S.BUS / JR X.BUS / FS iBUS /Graupner Hott Sumd
●AP1 supports G2P gimbal control.
●Supports Spektrum and JR satellite receivers.
●Configuration changes through iOS APP.
●Comply with RoHS restrictions.

AP1 Multicopter Flight Control System Specification

●Input voltage:DC 4.5~8.4V
●Operating current consumption:<250mA @ 4.8V
●Operating Frequency:400Hz
●Operating Temperature:-20℃~65℃(-4° ~ 149 °F)
●Hovering Precision (Depending on satellite status):Horizontal ±1m Vertical ±1m
●Highest flight speed:Horizontal 15m/sec Vertical 6m/sec
●Maximum Altitude Restriction:700m(2297ft) above the takeoff point



●Maximum angular speed:
  • ALE 115° /sec
  • ELE 115° /sec
  • RUD 145° /sec
●Maximum Tilting angle:30 degrees
●Supports External Peripherals:G2P Gimbal、VTD1 1080 HD Digital Video Transmitter
●Supports multicopter configurations:4 rotors + type, 4 rotors X type, 6 rotors + type, 6 rotors X type
●Dimension:49x34.3x20mm


PCU V2 Power Control Unit

●Input Voltage:13.2V~25.2V(4S~6S Li-Po)
●Operating Frequency:500KHz
●Dimension:62x35x26mm

Motor ESC

●Input Voltage:13.2V~25.2V(4S~6S Li-Po)
●Max Continuous Current:40A
●Dimension:74.2x27x12.7mm

BL4213 Motor 370KV(RPM/V)

●Input Voltage:DC 22.2V
●Max Continuous Current:25A
●Max Continuous Power:550W
●Stator Arms:12
●Magnet Poles:14
●Dimension/Weight:Φ4xΦ52x33mm / 185g
