TomCat TCG5025 G52 Outrunner 5025-590kV (Class 52 size)

TomCat TCG5025 G52 Outrunner 5025-590kV (Class 52 size)
Manufacturer: Tomcat
Availability: 3 in stock
SKU: TCG5025
$159.00

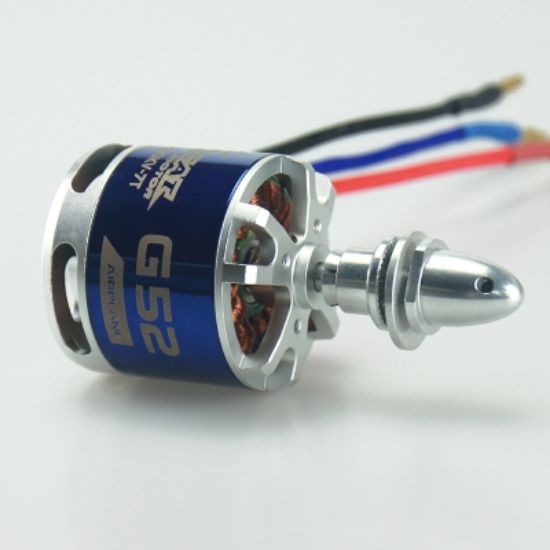

G52 5025-590kV Brushless Motor from Tomcat - DY-TC-G-5025-KV590

The Tomcat class are high quality brushless motors made using Japanese bearings, considered some of the finest bearings in the world.  Tomcat motors are manufactured from CNC blocks unlike cheaper motors that are made from molds. All Tomcat motors come with the necessary mounting hardware, tools, x-plate mount and compression collets in addition to the bolt-on propeller collet.  If you are looking for a reliable brushless motor for your 52-size aircraft that you can trust, the Tomcat G52 is your solution.

Features:

  • CNC-machined for high end precision and quality
  • Each Tomcat motor uses the highest quality Japanese bearings
  • All necessary mounting hardware is included

Includes:

  • Tomcat G52 5025-590kV Brushless Motor
  • Bolt-on propeller adapter with 6mm shaft diameter
  • Mounting hardware
  • X-plate mount
  • Compression collets

Requires:

  • Please review the specification table at the bottom of this page for battery, ESC and propeller ranges and recommendations that will work best for this motor

Brushless Motor Measurement Key

Product Specifications:

Motor Type

Outrunner

kV Rating (RPM/Volt)

590kV

Maximum Watts

1,600W

Continuous Current

62A

Maximum Burst Current

70A, 10 seconds

Recommended Battery (Input Voltage)

4S to 6S (14.8V to 22.2V)

Recommended ESC

80A

Recommended Propeller / EDF

12x8 to 14x7

Slots, Poles

12, 14

Shaft Diameter (A)

6mm

Shaft Length (B)

16mm

Motor Length (C)

52mm

Motor Diameter (D)

50mm

Overall Length (E)

75mm

Weight

355g / 12.52oz

Connector Type

4mm Bullet
