SKYRC RS16 Charger w/ eFuel 230W/17A PSU Combo

SKYRC RS16 Charger w/ eFuel 230W/17A PSU Combo
Manufacturer: SKYRC
Availability: Out of stock
SKU: 100078-01
$249.00

Super-compact Portable Balance
Charger/Discharger



SKYRC RS16 is a high-performance, micro processor control
charge/discharge station with battery management suitable for all current battery types. There is an integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; the maximum charge current/power can reach 16A/180W.

SKYRC RS16 represents the newest technology of chargers with its handheld super-compact portable charging system. The joystick gives the user best operational experience and also makes the charger smart and unique.

There are two DC inputs, one is banana plug type and the other is XT60 type. The banana plug type in the bottom is designed for Direct Plug Docking System.

- DC Input Voltage   11-18V
- Controls   Joystick
- Display Type   2x16 LCD
- Display Backlight   Blue
- Case Material   Metal
- Cooling System   Built-in fan x1pc
- Weight   405g
- PC Communications   USB Port for PC Control & Firmware Upgrade
- External Port   Balance Socket-XH, Temperature Probe Socket, Battery Socket, DC Input, Micro USB Port for PC
- Delta Peak Detection   NiMH/NiCad: 3-15mV/cell
- Charge Cutoff Temperature   20-80ºC(adjustable)
- Charge Voltage   NiMH/NiCad: Delta peak detection
- LiPo: 4.18-4.3V/cell
- LiIon: 4.08-4.2V/cell
- LiFe: 3.58-3.7V/cell
- Balance Current   200mA/cell
- Reading Voltage Range   0.1-25.8V/cell
- Battery Types/Cells   LiPo/LiIon/LiFe: 1-6cells
- NiMH/NiCad: 1-15cells
- Pb: 2-20V
- Battery Capacity Range   NiMH/NiCad: 100-50000mAh
- LiPo/LiIon/LiFe: 100-50000mAh
- Pb: 100-50000mAh
- Charge Current    0.1A-1A (±0.3A) 1A-16A (±10%)
- Safety Timer   1-720minutes off
- Charge Wattage   180W
- Discharge Current   0.1A-8A (±10%)
- Discharge Cut-off Voltage   NiMH/NiCad: 0.1-1.1V/cell
- LiPo: 3.0-3.3V/cell
- LiIon: 2.9—3.2V/cell
- LiFe: 2.6-2.9V/cell
- Pb: 1.8V
- Discharge Wattage   30W
- Balance Cells   6 cells
- Memory   10 different charge/discharge profiles
- Charge Method   CC/CV for lithium types and lead (Pb) batteries, Delta-peak Sensitivity for NiMH/NiCad



Two DC inputs



There are two DC inputs, one (XT60 Type )is located in the right side of the charger and the other (banana plug type) is located in the bottom.

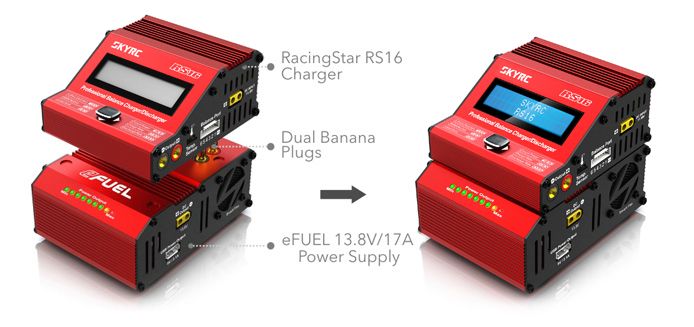

Direct Plug Docking System

There is a DC output on the bottom of the charger and it is designed for docking into the eFule 230W 13.8V Switch DC Power Supply

-------------------------------------------------------------------------------------------------------------------------------------------

Super Compact Size
EFUEL 230W/17A Power Supply
  The eFUEL can convert standard household power 100-240V AC to 13.8V DC power and supply max 17 amperes of continuous power. It delivers smooth and reliable power and it not only enables RacingStar RS16 Charger but also RacingStar RSTW Tire Warmer to dock directly without the use of messy DC cables. It can also be used with other DC devices.

- Input Voltage   100-240V AC
- Input AC Frequency   50-60Hz
- Output Voltage   13.8V DC±0.2V
- Output Current   17A±0.5A
- Current Overload Protection   ≥17.5A 500MS
- Input Fuse   5A Fuse
- Output Voltage Ripple   <150mV
- USB Output   5V / 2.1A
- Power Efficiency   91%
- Power Factor   >0.98
- Over Temperature Protection   65℃
- Cooling Method   Cooling Fan
- Operating Temperature   0-40℃
- Operating Humidity   0-90%
- Net weight   602g
