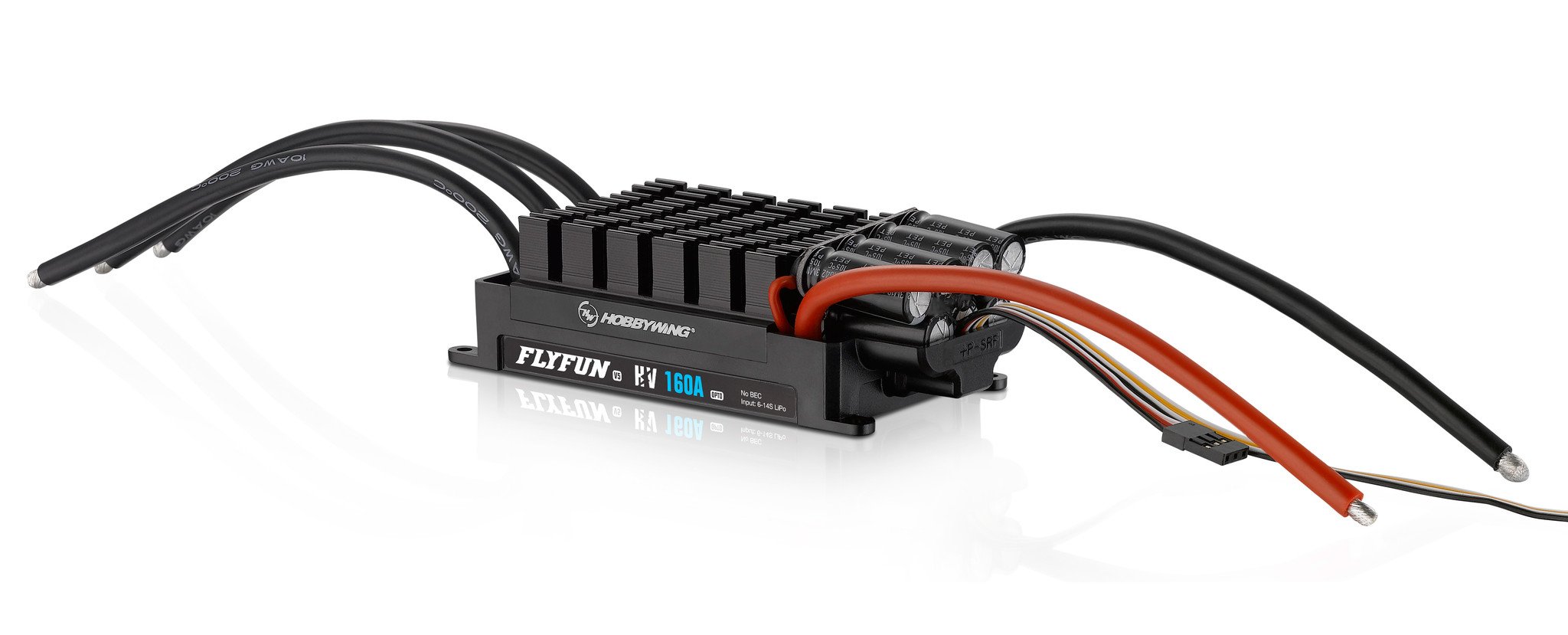

Hobbywing 30201650 FLYFUN V5 160A HV ESC (6S-14S)

Hobbywing 30201650 FLYFUN V5 160A HV ESC (6S-14S)
Manufacturer: Hobbywing
Availability: Out of stock
SKU: 30201650
$269.00

ESC programmable through Transmitter and LED program card (purchase separately)

  • DEO Technology / Active Freewheeling
    The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
  • Rapider and smoother throttle response, better stability and flexibility during flight.
  • Higher driving efficiency, longer flight time.
  • Lower ESC temperature, more reliable operation.
  • Soft Start-ups & Reverse Brake
  • High-power BEC: High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V & 7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.
  • Multiple Protections: Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.
  160A HV OPTO V5 130A HV OPTO V5
p/n 30201650 30201500
Cont./Peak Current 160A/200A 130A/160A
Input 6-14S LiPo 6-14S LiPo
BEC  NO NO
Input /output wire 10AWG-150mm 10AWG-150mm
Input connector NO NO
Output
connector
NO NO
Size 110x50.3x33.3mm 110x50.3x33.3mm
weight 221.5g 221.5g
